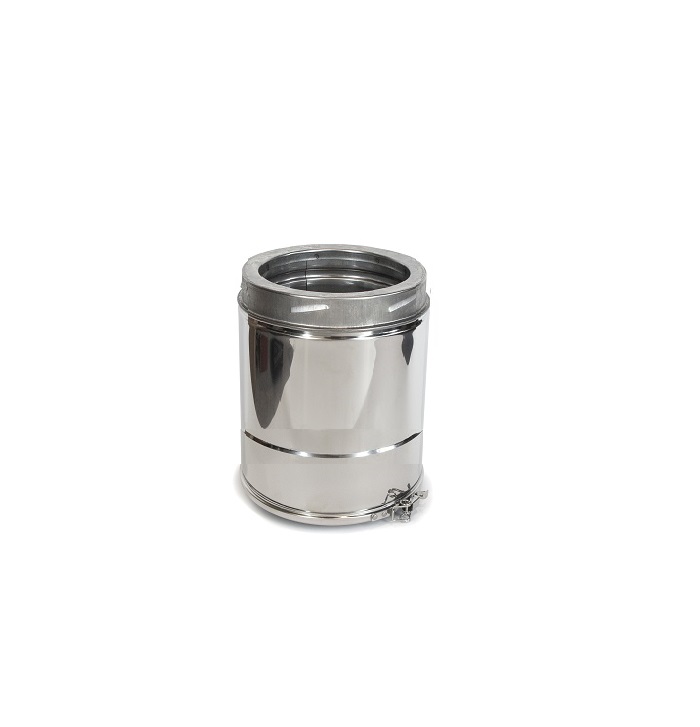

The Schiedel ICID Telescopic Pipe 50-235mm is an adjustable twin wall flue section designed to achieve an exact system length on site without cutting standard chimney components. Available for 125mm (5″) and 150mm (6″) internal flue diameters, its adjustable 50-235mm length is particularly useful where fixed pipe sections do not precisely match the required flue run.
The telescopic design allows the final chimney length to be adjusted during installation. Rather than cutting a standard component to compensate for a small remaining distance, this section can be used alongside standard ICID components to make up the required dimension.
It can also be incorporated into the starter section of the system. In this position, the telescopic movement can allow the appliance to be removed for maintenance without having to move the complete chimney system.
Two versions are available for 125mm (5″) and 150mm (6″) internal flue diameters. The appropriate size should be selected to correspond with the adjoining Schiedel ICID components.
The wider ICID Plus system is designed with a load-bearing outer case, while the inner liner can expand independently. This allows thermal expansion to be accommodated within the individual joints of the chimney system.
Key Features
- Adjustable 50-235mm pipe length
- Schiedel ICID twin wall component
- Avoids on-site component cutting
- Enables exact system length
- Used with standard components
- Suitable for starter sections
- Supports appliance maintenance access
- 125mm internal diameter option
- 150mm internal diameter option
- 5-inch system option
- 6-inch system option
- Load-bearing outer case system
Expert Insight
The main advantage of the telescopic section is fine adjustment. Where fixed ICID pipe lengths leave a small dimensional difference, the 50-235mm range allows the flue route to be completed without cutting a standard chimney component. Its use within a starter section can also make future appliance removal more practical.
Suitability
The Schiedel ICID Telescopic Pipe is suited to twin wall chimney installations where the final flue length needs precise adjustment, or where a starter section is being arranged to allow the appliance to be removed for maintenance without disturbing the complete system.
Installation / Technical Notes
The telescopic pipe provides an adjustable length of 50-235mm and is designed to be used alongside standard ICID components. It can also be incorporated into starter sections to facilitate appliance removal for maintenance. Select either the 125mm (5″) or 150mm (6″) version to match the internal flue diameter of the system.
