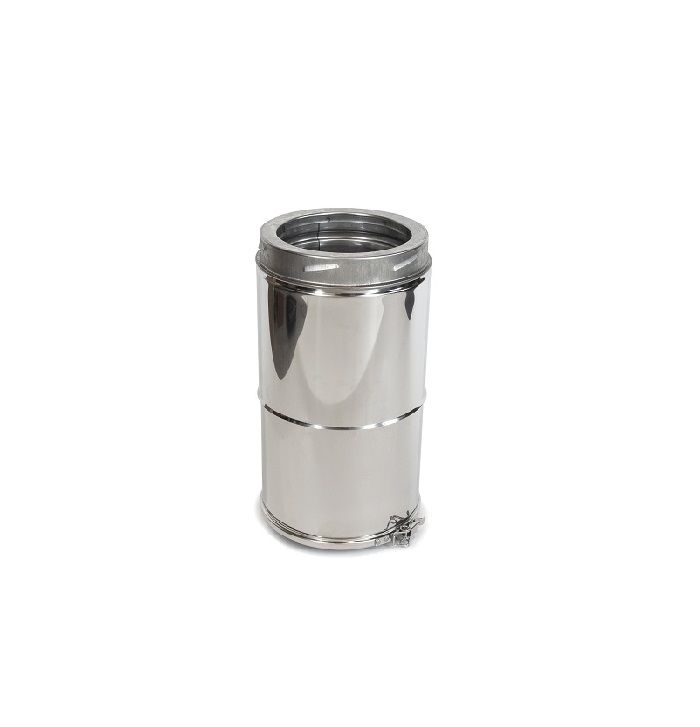

The Schiedel ICID Telescopic Pipe 215-310mm is an adjustable twin wall flue section designed to achieve an exact chimney length on site without cutting standard components. Available for 125mm (5″) and 150mm (6″) internal flue diameters, it provides an adjustable length between 215mm and 310mm.
The telescopic construction allows the flue run to be fine-tuned where fixed pipe lengths do not correspond exactly with the required overall dimension. This is particularly useful towards the final stages of setting out a chimney system, where a relatively small difference needs to be accommodated.
Using an adjustable section also avoids the need to cut standard ICID components on site. It can be combined with the fixed pipe lengths in the range to achieve the required system length more accurately.
The 215-310mm telescopic pipe can also be incorporated into the starter section of the chimney. Used in this position, it can allow the appliance to be removed for maintenance without having to move the complete flue system.
Two versions are available for 125mm (5″) and 150mm (6″) internal flue diameters. The appropriate size should be selected to match the adjoining Schiedel ICID twin wall components.
The wider ICID Plus system uses a load-bearing outer case, while its inner liner can expand independently. This allows thermal expansion to be accommodated within the individual joints of the chimney system.
Key Features
- Adjustable 215-310mm pipe length
- Schiedel ICID twin wall component
- Enables exact flue length
- Avoids on-site pipe cutting
- Used with standard components
- Suitable for starter sections
- Assists appliance removal
- Useful for maintenance access
- 125mm internal diameter option
- 150mm internal diameter option
- 5-inch system option
- 6-inch system option
Expert Insight
This 215-310mm version is useful where a greater adjustable length is required than the shorter telescopic section can provide. It gives installers scope to fine-tune the final chimney dimension while retaining standard ICID components, and its use in a starter section can also simplify future appliance removal.
Suitability
The Schiedel ICID Telescopic Pipe 215-310mm is suited to twin wall chimney installations requiring precise adjustment of the overall flue length, particularly where standard fixed sections leave a remaining distance between 215mm and 310mm.
Installation / Technical Notes
The telescopic pipe provides an adjustable length of 215-310mm and is designed for use alongside standard Schiedel ICID components. It may also be used within the starter section to allow appliance removal for maintenance without moving the full chimney system. Select the 125mm (5″) or 150mm (6″) version to match the internal flue diameter.
