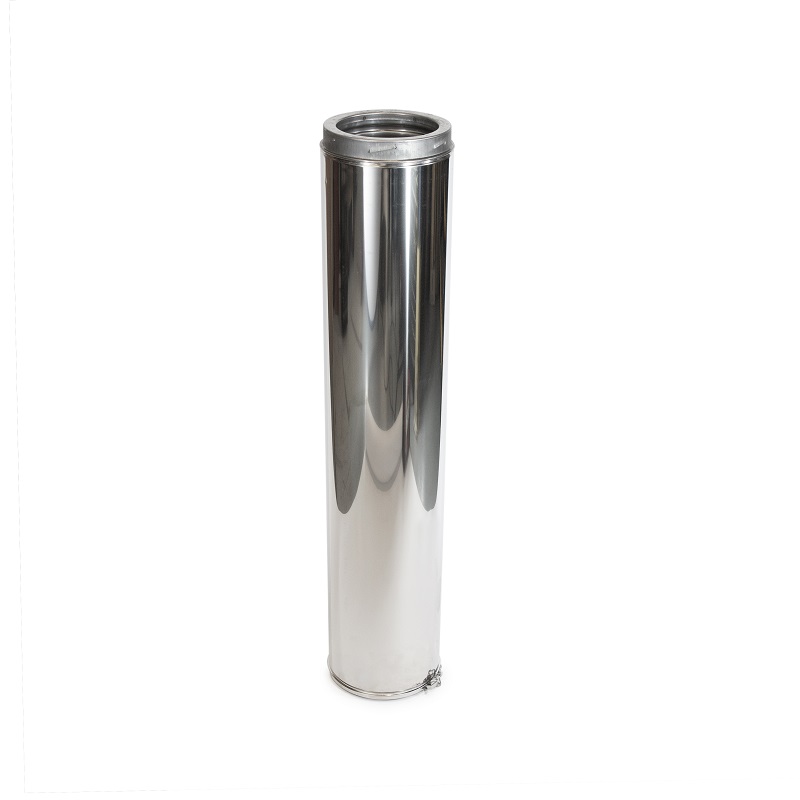

The Schiedel ICID 1m twin wall chimney pipe is a 1000mm flue section designed to build longer vertical or horizontal runs within an ICID twin wall chimney system. Available for 125mm (5″) and 150mm (6″) internal flue diameters, it uses the ICID twist-lock jointing system and is intended where a substantial straight section of flue is required.
At 1000mm long, this is suited to sections of the chimney route where there is sufficient space for a longer pipe length. Shorter ICID pipe sections can then be used elsewhere in the installation where smaller distances need to be made up.
The pipe can be installed either vertically or horizontally, giving it a practical role in different parts of the flue layout. It forms part of the Schiedel ICID twin wall system and connects directly with compatible ICID components.
ICID Plus uses a twist-lock jointing method. The male and female collars of adjoining main chimney components are pushed together and then twisted through 1/6 of a turn to lock the collars into position where a locking band is required.
The wider ICID Plus system is designed with a load-bearing outer case, while the inner liner is free to expand independently. This allows thermal expansion to be accommodated within each individual system joint.
Two internal diameter options are available: 125mm (5″) and 150mm (6″). The correct version should be selected to match the adjoining ICID twin wall chimney components.
Key Features
- 1000mm twin wall pipe
- Schiedel ICID chimney component
- Twist-lock jointing system
- 1/6 turn joint connection
- Vertical installation possible
- Horizontal installation possible
- 125mm internal diameter option
- 150mm internal diameter option
- 5-inch system option
- 6-inch system option
- Load-bearing outer case system
- Independent inner liner expansion
Expert Insight
The 1m length is useful for building the main straight sections of an ICID chimney where a full 1000mm pipe can be accommodated. Shorter pipe lengths can then be introduced where finer adjustment of the final flue route is required.
Suitability
The Schiedel ICID 1m Length is suited to twin wall chimney installations requiring a long straight pipe section within either a vertical or horizontal flue run.
Installation / Technical Notes
The pipe uses the Schiedel ICID twist-lock jointing system and can be installed vertically or horizontally. Main chimney components are connected by pushing the male and female collars together and twisting them through 1/6 of a turn to lock them into place. Select either the 125mm (5″) or 150mm (6″) version to match the internal diameter of the adjoining system.
