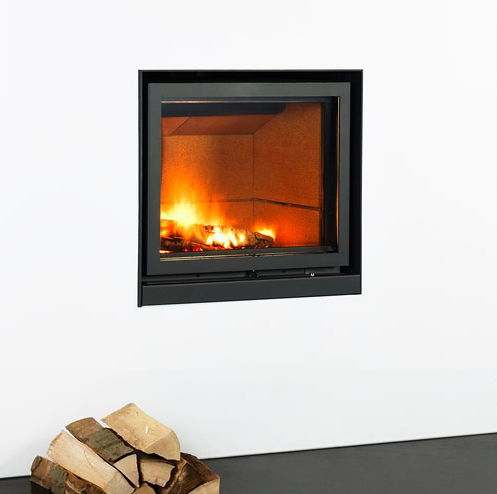

The Stûv 16/78-in Inset Wood Burning Stove is the widest model in the Stûv 16-in range, designed for customers who want a broader fire view, longer log capacity and stronger built-in presence while keeping the essential, integrated look of the Stûv 16 family. It is the most substantial option in the range and is best suited to larger fireplace openings or feature walls where the fire is intended to have more impact.
Like the other 16-in models, it is designed to fit neatly into an existing hearth or a newly created fireplace with limited building work. Its clean inset proportions make it easy to integrate into different styles of interior, while the stove’s larger width gives the flames a stronger horizontal presence. It uses a hinged door system and closed-door operation, with a single control managing the three air supplies. The double-combustion system helps produce more efficient, cleaner burning with less ash and lower emissions.
The 16/78-in can also be customised with a range of frame options, including a narrow frame, an applied frame, a customisable frame and the larger D4 frame. The D4 format increases the visual presence of the insert and can integrate a wood niche to either side, with the log holder included.
In performance terms, the 16/78-in offers a 7.8 kW nominal output, with an output range of 3.6 to 9.3 kW, 77.0% nominal efficiency and an energy efficiency class of A. It accepts 60 cm logs, weighs 112 kg, and uses a 180 mm smoke duct with a 63 mm outside air inlet. An optional fan is available for more even room heat distribution, although the insert is designed to operate effectively without one.
Key Features:
- Inset wood burning stove
- Widest Stûv 16-in model
- Hinged loading door
- Closed-door operation
- Single air control
- Double-combustion system
- Operates without fan
- Optional fan available
- Direct outside air inlet
- 7.8 kW nominal output
- Output range 3.6 to 9.3 kW
- 77.0% nominal efficiency
- Energy efficiency class A
- Accepts logs up to 60 cm
- Narrow, applied and D4 frame options
Expert Insight
The 16/78-in is the strongest choice where the customer wants a larger, more panoramic inset fire without moving away from the clean, minimalist Stûv 16 look. It offers the broadest firebox and longest log capacity in the range, which makes it feel more substantial both visually and in everyday use.
Its larger width also makes it especially effective when combined with the D4 frame, where it can become a more architectural focal point in the room.
Suitability
The Stûv 16/78-in Inset Wood Burning Stove is well suited to larger fireplace openings, feature chimney breasts, and interiors where a wide built-in wood burner is wanted with a stronger visual presence and longer log capacity.
Installation / Technical Notes
This model weighs 112 kg, accepts 60 cm logs, uses a 180 mm smoke duct and a 63 mm outside air inlet. Minimum insulation thickness is 9 cm at the back, 10 cm at the sides, 9 cm above and 0 cm below.
Frame Options
Hinged Door System
The Stûv 16 is fitted with a hinged door which only allows the fire to be refuelled. The Stûv operates only with the door closed.
Frame D4
The frame D4 increases the presence of the fireplace by giving it a 16/9 format and makes it possible to integrate a wood niche.
+ Available for the 58cm, 68cm and 78cm fireplaces.
+ Version with wood niche left or right.
+ Log holder included in the niche.
Fan
Stûv 16 stoves, unlike the old roomheaters, have been designed to operate without ventilation. The fan is an optional extra.
The fan improves the circulation of hot air in the rom and makes the temperature uniform.
