The Stûv 16/68-in Inset Wood Burning Stove is the intermediate model in the Stûv 16-in range, designed to offer a wider fire view, greater log capacity and stronger room presence while still fitting neatly into a built-in fireplace opening. It is a strong all-round option for customers who want a clean inset wood burner with good heating performance and flexible finishing options.
The 16/68-in follows the same core concept as the rest of the range: an essential fire, seamlessly integrated. Its compact inset design allows it to sit comfortably within an existing hearth or a new fireplace build, while the stove itself remains simple, understated and highly effective. It uses a hinged door system and closed-door operation, with a single control adjusting the three air supplies. The double-combustion system helps optimise the burn, reduce ash and keep emissions low. As standard it operates without a fan, but an optional fan kit is available to improve circulation and make temperatures more uniform.

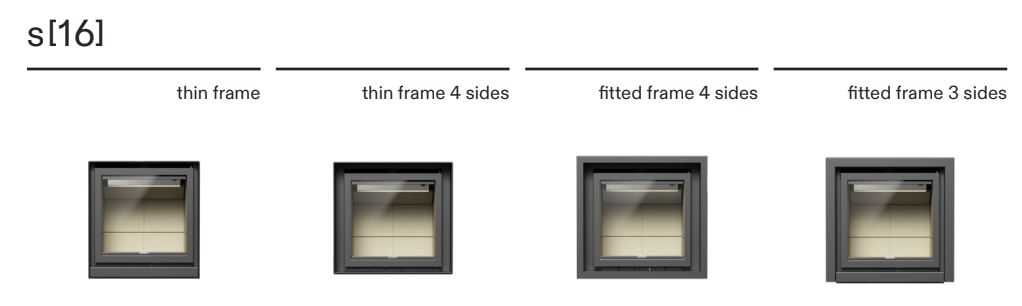

It is also highly flexible in how it can be finished. Frame options include a narrow frame, an applied frame, a customisable frame and the larger D4 frame, which creates a wider 16:9 style look and allows the integration of a wood niche to the left or right, complete with included log holder.
In performance terms, the 16/68-in offers a 7.4 kW nominal output, with an output range of 3.5 to 8.9 kW, 77.0% nominal efficiency and an energy efficiency class of A. It accepts 50 cm logs, weighs 102 kg, and uses a 180 mm smoke duct with a 63 mm outside air inlet.
Key Features:
- Inset wood burning stove
- Intermediate Stûv 16-in model
- Hinged loading door
- Closed-door operation
- Single air control
- Double-combustion system
- Operates without fan
- Optional fan available
- Direct outside air inlet
- 7.4 kW nominal output
- Output range 3.5 to 8.9 kW
- 77.0% nominal efficiency
- Energy efficiency class A
- Accepts logs up to 50 cm
- Narrow, applied and D4 frame options
Expert Insight
The 16/68-in is likely the most versatile size in the range for many homes. It gives a noticeable step up in width and log capacity over the 58 model, while remaining easier to integrate than the widest 78 version. For many standard living rooms, it is likely the best balance of size, output and fire view.
The availability of the D4 frame also makes it especially useful if the customer wants a stronger visual statement without moving to a freestanding stove.
Suitability
The Stûv 16/68-in Inset Wood Burning Stove is well suited to medium-sized fireplace openings, living rooms, and projects where a refined built-in wood burner is wanted with strong performance and multiple finishing options.
Installation / Technical Notes
This model weighs 102 kg, accepts 50 cm logs, uses a 180 mm smoke duct and a 63 mm outside air inlet. Minimum insulation thickness is 3 cm at the back, 3 cm at the sides, 9 cm above and 0 cm below.
Frame Options
Hinged Door System
The Stûv 16 is fitted with a hinged door which only allows the fire to be refuelled. The Stûv operates only with the door closed.

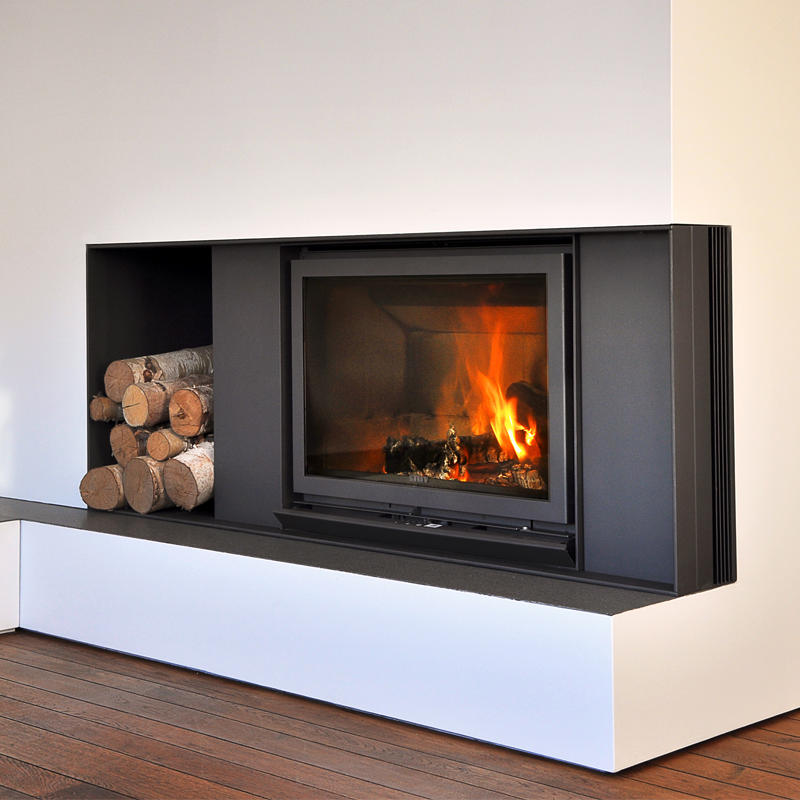

Frame D4

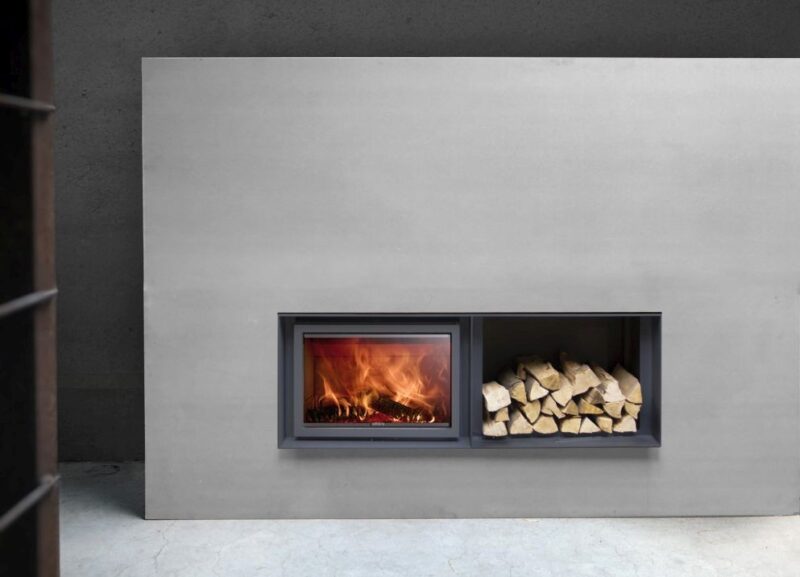

The frame D4 increases the presence of the fireplace by giving it a 16/9 format and makes it possible to integrate a wood niche.
+ Available for the 58cm, 68cm and 78cm fireplaces.
+ Version with wood niche left or right.
+ Log holder included in the niche.

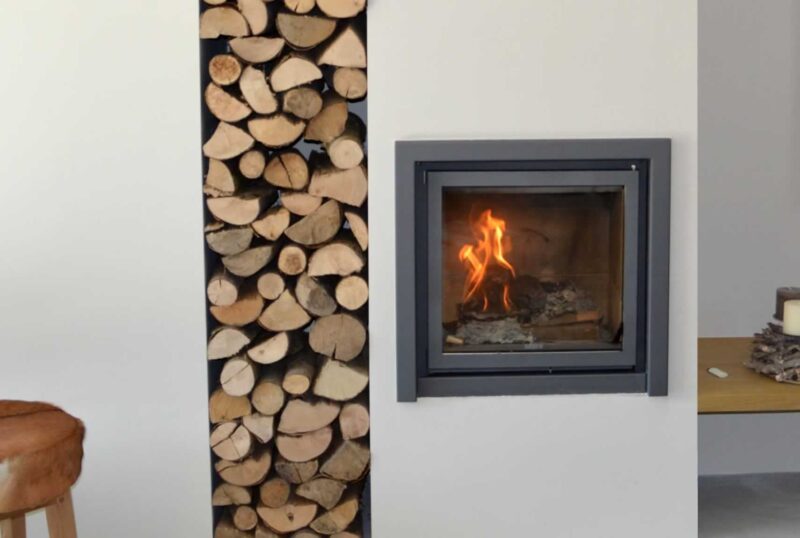

Fan
Stûv 16 stoves, unlike the old roomheaters, have been designed to operate without ventilation. The fan is an optional extra.
The fan improves the circulation of hot air in the rom and makes the temperature uniform.
