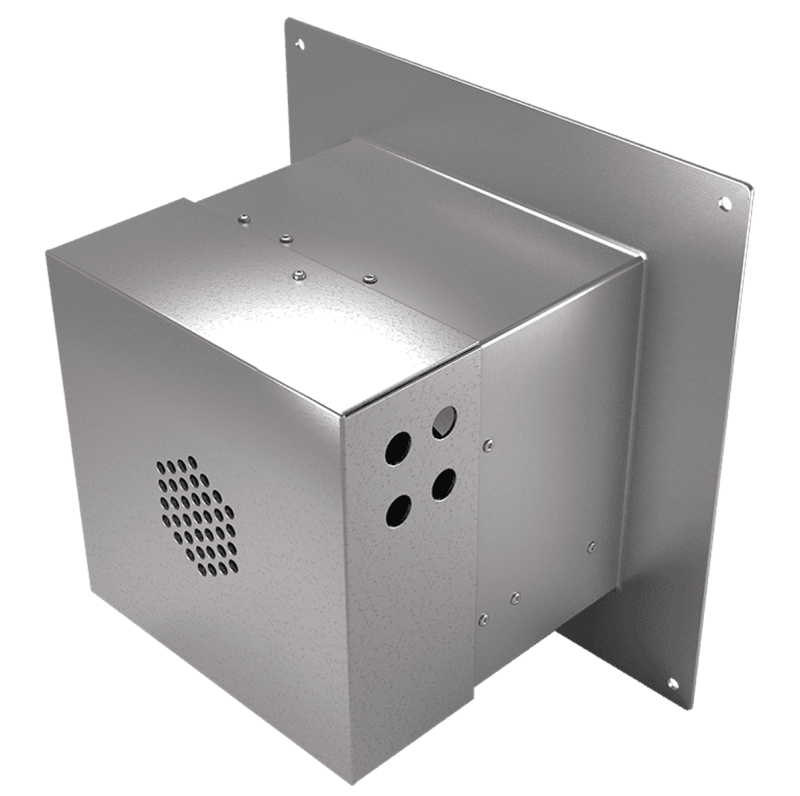

The RSG200 chimney fan from Exodraft is the ultimate solution for gas installations requiring superior performance and long term reliability. Designed for wall mounting, this fan works by creating negative pressure in the flue pipe to optimise the draught, directing flue gases safely outside the room. It’s perfect for systems that need to handle distances up to 15 meters, giving users the flexibility to install the gas system away from the chimney and still maintain efficient performance.
Wall-mounted chimney fan with centrifugal impeller and built-in pressure
Equipped with an advanced fail safe system, the RSG200 ensures the integrity of your gas installation by preventing any gas leaks. This critical safety feature automatically shuts off the gas supply if the system detects insufficient draft, providing an added layer of protection for both residential and commercial installations. The fail safe function is essential for ensuring the safety of any gas powered system, offering peace of mind to users.
The RSG200 fan is built to last, thanks to its galvanized steel construction and centrifugal wheel, which are designed to handle the harsh conditions of flue gases. The motor is engineered to withstand continuous temperatures up to 200°C, ensuring that the fan operates reliably in high heat environments. The fan’s durable design reduces the need for maintenance while maintaining efficiency over time, even in the face of dirt and debris from the flue gases.
Operating at a maximum speed of 1400 RPM, the RSG200 is energy efficient, requiring a voltage of 1 x 230V and drawing 0.40 amperes with a power consumption of just 0.11 kW. Despite its robust performance, the fan weighs only 20 kg, making it easy to install and maintain. Its vertical discharge direction efficiently directs the exhaust upwards, ensuring a safe and controlled venting of flue gases.
With its high quality construction and advanced safety features, the RSG200 is the ideal choice for both private and commercial installations, where reliability and efficiency are paramount. Whether you’re upgrading an existing system or installing a new one, this chimney fan provides the necessary support for safe, efficient gas venting.
Main Features:
- Ideal for gas installations up to 15 meters
- Creates optimal draught with negative pressure
- Fail safe system prevents gas leaks
- Constructed from galvanized steel for durability
- High temperature resistant motor (up to 200°C)
Control Options
Isolation Switch
An isolation switch is a legal requirement that ensures the chimney fan can be safely disconnected from the electrical current, particularly for tasks like chimney sweeping.
Documentation
Exodraft Technical Data: Datasheet_RSG_UK
Exodraft Specification: Manual_RSG_UK
