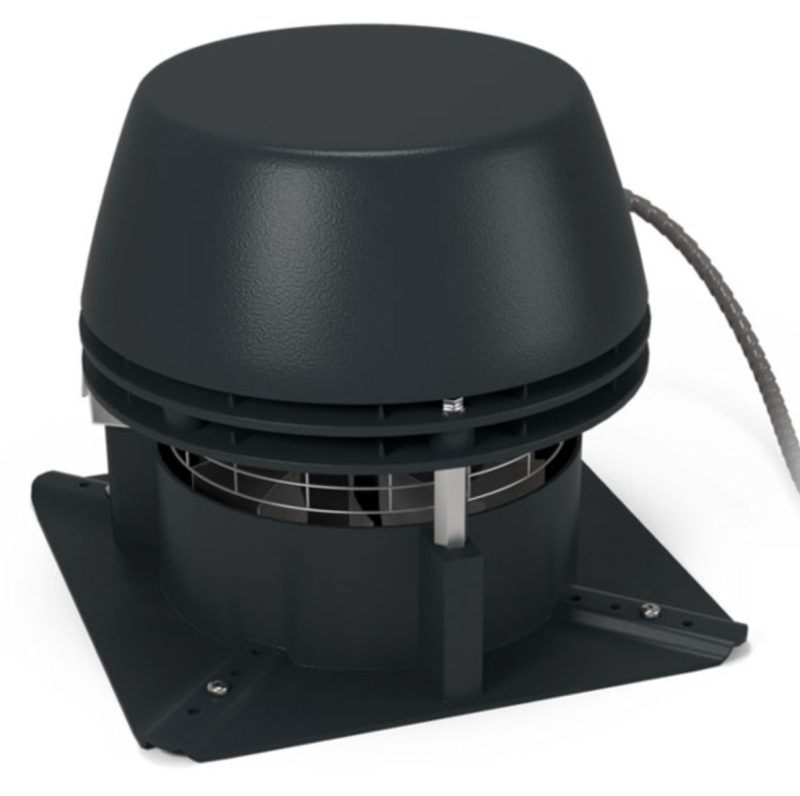

Exodraft’s RSHG012 chimney fan is an efficient and reliable solution designed for gas fireplaces and gas-fired single boilers. It is specifically engineered to expel flue gases horizontally, creating optimal draught in the chimney by generating negative pressure within the flue pipe. This fan is mounted on top of the chimney and works seamlessly to enhance the performance of both brick and steel chimneys, making it suitable for both residential and commercial applications.
The RSHG012 is built with safety in mind, featuring a fail-safe function that ensures gas leakage is prevented. A pressure switch and flow measurement system are incorporated into the fan to monitor draught levels in real time. If the draught is insufficient, the gas supply is automatically shut off, ensuring no gas leakage occurs. To monitor this fail-safe function, the Exodraft control unit EFC21 must be connected to the pressure switch, which ensures that the fan is operating correctly and efficiently.
Constructed from corrosion-resistant aluminum, the RSHG012 is designed to withstand continuous temperatures up to 200°C, guaranteeing reliable performance over time. The motor is housed in a heat-resistant enclosure, while the axial impeller and cooling openings ensure that the motor remains cool during operation. The fan also includes a heat-resistant, strain-relieved motor cable protected by an armored external hose, further enhancing its durability and operational reliability.
Cleaning and maintenance of the RSHG012 are made simple, thanks to its easily accessible design. The chimney fan can be opened, allowing chimney sweepers to clean the system without hassle. The stainless steel axial impeller can be cleaned of soot and deposits, ensuring that the fan remains efficient and safe to operate over the long term.
The RSHG012 is designed for optimal safety, with a stainless steel mesh installed at the discharge opening to prevent birds or other debris from entering the system. This attention to detail makes the RSHG012 a practical and long-lasting choice for homeowners and businesses alike.
Main Features:
- Horizontal discharge for efficient venting
- Fail-safe function to prevent gas leaks
- Corrosion-resistant aluminum construction
- Maximum continuous temperature of 200°C
- Easy cleaning and maintenance
Control Options
Flange Options
Flanges include a set of vibration dampers (1100251).
395 x 395mm
Mounting Options
Rainshield Options
This chimney fan will use the RS rainshield.
Isolation Switch
An isolation switch is a legal requirement that ensures the chimney fan can be safely disconnected from the electrical current, particularly for tasks like chimney sweeping.
Documentation
Exodraft Technical Data: Datasheet_RSHG_UK
Exodraft Specification: Manual_RSHG_UK
