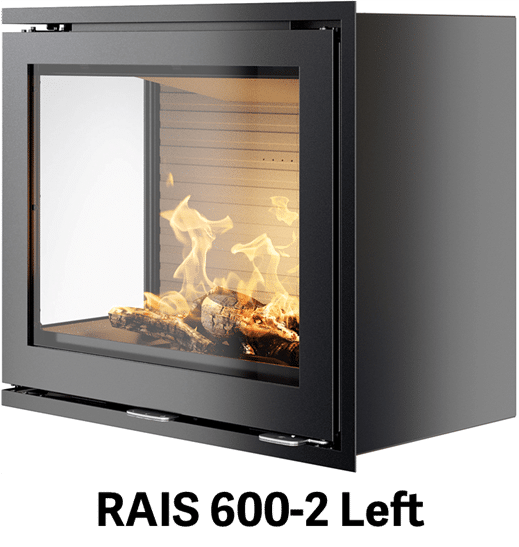

The RAIS 600-2 Corner Inset Wood Burning Fire is a two-sided built-in fireplace designed to create a wider view of the flames from both the front and one side.
With two large glass panes, the RAIS 600-2 gives the impression of a more open fireplace while retaining the efficiency and control of a closed wood-burning insert. It can be specified in either a left- or right-facing configuration, allowing the side glass to be positioned to suit the room and fireplace layout.
The design is particularly effective within a corner chimney breast or bespoke architectural feature, where the side glass allows the fire to remain visible from more than one part of the room.
A choice of steel or glass door provides further flexibility over the finished appearance. The overall styling remains clean and restrained, allowing the flames to remain the main visual feature.
The appliance also connects to the RAIS AirSystem through either the bottom or rear wall, helping accommodate installations where an external combustion air supply is required.
The supplied technical specification lists a rated heat output of 5.8kW, with an operating range of approximately 2–8kW. Efficiency is listed at 76%, with an A energy efficiency class in the supplied retailer information.
A 150mm flue outlet is specified, making this an important dimension to consider when planning the chimney or flue system.
The combination of moderate output, two-sided glazing and left- or right-hand installation options makes the RAIS 600-2 Corner Inset Wood Burning Fire a versatile choice for residential interiors where a more open flame view is wanted without moving to a much larger architectural insert.
Key Features
- Two-sided corner inset wood burning fire
- RAIS 600-2 design
- Front and side glass view
- Left- or right-facing versions
- Large glass panes
- Open-fire-inspired appearance
- Steel or glass door options
- Rated output of 5.8kW
- Output range of approximately 2–8kW
- 76% efficiency
- Energy efficiency class A
- 150mm flue outlet
- RAIS AirSystem compatible
- External air connection through base or rear
- Suitable for corner installations
- Suitable for bespoke fireplace features
Expert Insight
The RAIS 600-2 is a practical middle ground between a conventional front-facing inset and a larger panoramic corner fire. Its 5.8kW rated output suits many residential spaces, while the side glass makes a noticeable difference to how open the fireplace feels within the room.
Suitability
The RAIS 600-2 Corner Inset Wood Burning Fire is particularly suited to corner chimney breasts, contemporary living rooms, renovation projects and bespoke built-in fireplaces where the flames need to be visible from two adjoining directions.
Installation / Technical Notes
Key supplied technical data:
- Product: RAIS 600-2
- Appliance type: Two-sided corner inset wood burning fire
- Rated output: 5.8kW
- Output range: 2–8kW
- Efficiency: 76%
- Energy efficiency class: A

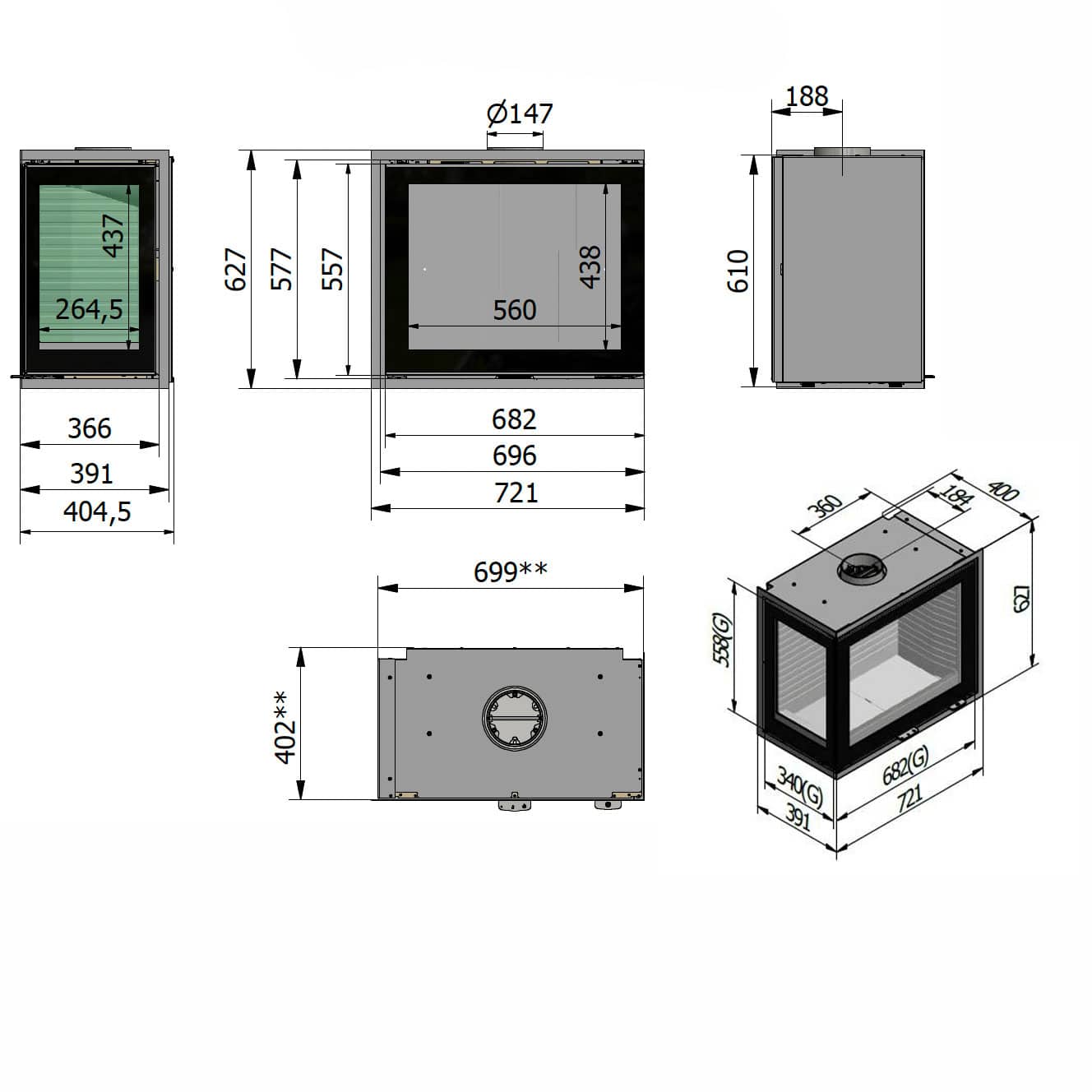

- External dimensions: 699mm W x 402mm D x 610mm H
- Combustion chamber dimensions: 544mm W x 256mm D x 471mm H
- Installation dimensions: 704mm W x 375mm D x 615mm H
- Outer frame dimensions: 721mm W x 391mm D x 627mm H
- Flue outlet diameter: 150mm
- AirSystem connection: Through bottom or rear
- Configuration: Left- or right-facing
The quoted heating reference of 30–120m² at -20°C is based on the supplied technical data and should not replace a property-specific heat-loss calculation.
Final recess dimensions, hearth construction, flue arrangement, combustion air supply and combustible clearances should be checked against the current RAIS installation manual before fitting.
