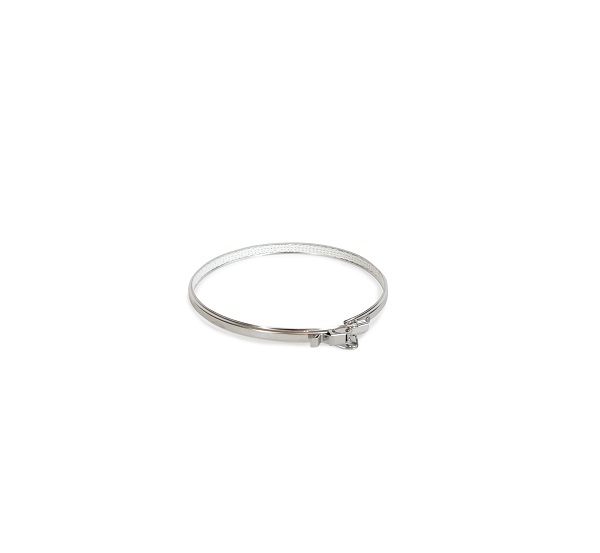

The Schiedel ICID Twin Wall Locking Band is a stainless steel jointing component designed to secure connections throughout an ICID twin wall flue system. A locking band must be fitted to every joint, with sizes available for 125mm (5″), 150mm (6″), 180mm (7″) and 200mm (8″) internal flue diameters.
The band fits around the joint between adjoining chimney components and is secured using an integrated quick-release clip. This provides a straightforward means of mechanically securing each connection within the system.
Locking bands are supplied as standard with Schiedel ICID components that have a female collar. Separate locking bands are therefore particularly relevant where an additional or replacement band is required within an existing or planned system.
The locking band itself is manufactured from stainless steel and forms part of the jointing arrangement used throughout the Schiedel ICID twin wall range.
The wider ICID Plus system is designed with a load-bearing outer case and an inner liner that can expand independently. This allows thermal expansion to be accommodated at each joint within the chimney system.
Four diameter options are available, covering internal flue sizes from 125mm through to 200mm. The correct locking band should be selected to correspond with the diameter of the ICID twin wall flue components being connected.
Key Features
- Schiedel ICID locking band
- Required at every joint
- Stainless steel construction
- Integrated quick-release clip
- Secures twin wall joints
- Supplied with female-collar components
- 125mm internal diameter option
- 150mm internal diameter option
- 180mm internal diameter option
- 200mm internal diameter option
- 5-inch system option
- 6-inch system option
- 7-inch system option
- 8-inch system option
Expert Insight
The locking band is a fundamental jointing component rather than an optional finishing accessory. Because a band is required at every connection in the ICID system, the selected size needs to match the internal diameter of the chimney components being joined.
Suitability
The Schiedel ICID Locking Band is suited to ICID twin wall chimney installations requiring an additional or replacement locking band for a 125mm, 150mm, 180mm or 200mm internal diameter system.
Installation / Technical Notes
A locking band must be fitted to every joint within the Schiedel ICID system. The stainless steel band is secured using its quick-release clip. Locking bands are supplied as standard with components incorporating a female collar.
