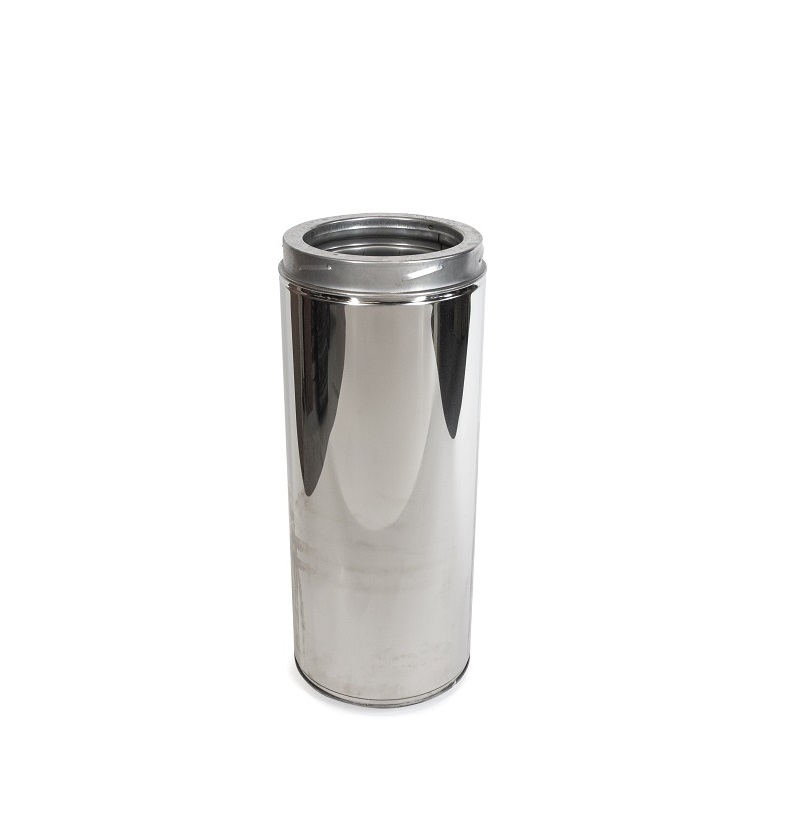

The Schiedel ICID Plus 500mm twin wall chimney pipe is a medium-length flue section designed to build up the required distance within an ICID twin wall chimney system. Available for 125mm (5″) and 150mm (6″) internal flue diameters, it uses the ICID twist-lock jointing system and can be installed vertically or horizontally.
At 500mm long, this section sits between the shorter make-up lengths and longer chimney pipe sections, making it useful where a moderate amount of additional flue length is required. It can help reduce the number of shorter components needed when building a chimney route while still giving more flexibility than a full-length section.
The pipe forms part of the Schiedel ICID Plus twin wall range and connects using a twist-lock jointing system. Compatible ICID components can therefore be joined together to create the required chimney layout.
The 500mm section can be used in either vertical or horizontal runs, depending on the design of the flue system. This makes it suitable for both rising chimney sections and horizontal connecting sections where a 500mm length is appropriate.
Two internal diameter options are available: 125mm (5″) and 150mm (6″). The correct version should be selected to match the diameter of the adjoining Schiedel ICID twin wall components.
Key Features
- 500mm twin wall pipe
- Schiedel ICID Plus component
- Medium-length chimney section
- Twist-lock jointing system
- Vertical installation possible
- Horizontal installation possible
- 125mm internal diameter option
- 150mm internal diameter option
- 5-inch system option
- 6-inch system option
- Suitable for longer make-up sections
Expert Insight
The 500mm length is useful where the chimney route needs more distance than a short 200mm or 300mm section provides, but a longer pipe would be unnecessary. Using a 500mm section can also simplify the layout by reducing the number of individual joints required compared with combining several shorter lengths.
Suitability
The Schiedel ICID 500mm Length is suited to twin wall chimney installations requiring a medium-length pipe section within either a vertical or horizontal flue run.
Installation / Technical Notes
The pipe uses the Schiedel ICID twist-lock jointing system and can be installed vertically or horizontally. Select the 125mm (5″) or 150mm (6″) version to match the internal diameter of the adjoining ICID chimney system.
