The Stûv 30-in R wood burning inset stove is a raised built-in fire designed to combine high heat output with a more architectural, elevated presentation of the flames. As the raised version of the Stûv 30 inset range, it delivers the same advanced combustion and distinctive operating flexibility, but in a format that lifts the fire higher within the wall for a stronger visual presence.
At the core of the design is Stûv’s 3-door system, which allows you to rotate the drum and choose the door best suited to the moment. The glass door gives a broad view of the flames with strong output and efficient closed-door operation. The solid door slows the fire, supports efficient running and conceals the combustion chamber when the stove is not in use. The open-fire position allows refuelling and gives a more immediate fireside feel. This makes the appliance far more adaptable than a conventional inset stove with a single fixed front.
The Stûv 30-in R is also engineered for controlled combustion and built-in installation performance. It features precision control of combustion air, separate primary and secondary air control, post-combustion and a high level of airtightness. The supplied data states that it uses no room air consumption issues, offers no CO in the living room, and maintains excellent efficiency even at half power with low emissions of CO and fine particles. The stove has a direct outside air inlet under the stove, helping it suit more airtight homes, including traditional, energy-efficient and wood-framed homes. Hot air can also be distributed through 150 mm outlets, with an optional fan available where enhanced warm air circulation is required.
Performance is substantial. The stove has a nominal output of 9.5 kW, an output range of 4.6 to 13.5 kW, nominal efficiency of 80.8%, seasonal efficiency of 70.8%, fine particle emissions of 22 mg/Nm³, and CO emissions of 0.04%. It accepts horizontal logs up to 50 cm and vertical logs up to 33 cm, giving flexibility in loading depending on how the fire is being run.
Key Features:
- Raised built-in wood burning stove
- 9.5 kW nominal output
- Output range from 4.6 to 13.5 kW
- Rotating 3-door system
- Glass door for flame view
- Solid door for slower burn and concealed firebox
- Open-fire mode
- Nominal efficiency of 80.8%
- Energy efficiency class A+
- Direct outside air inlet under the stove
- High airtightness
- Primary and secondary air control
- Post-combustion system
- Optional hot air fan
- 150 mm hot-air outlets
- Built-in ashtray
- Takes 50 cm horizontal logs
- Takes 33 cm vertical logs
- 180 mm top flue outlet
- Optional barbecue, façade, ready-to-fit kit, log rack, Mobilobox and floor plate
Expert Insight
The raised format is the key positional difference here. It changes the way the fire sits within the room, bringing the flame picture into a higher line of sight and giving the installation a more deliberate architectural feel. That makes this version especially effective where the fireplace is intended to be read as part of the wall design rather than as a low-set hearth feature.
Technically, the combination of airtight combustion, direct external air supply and good efficiency across a wide output range makes this a strong option for more demanding installations. The 3-door system is also more than a design feature: it gives meaningful control over how the stove behaves, whether the priority is visible flame, slower running or practical refuelling.
Suitability
The Stûv 30-in R is well suited to design-led built-in fireplace projects, energy-efficient homes, wood-framed properties and interiors where the fire needs to sit higher within the wall for stronger visual impact. It is a strong choice for customers who want a premium raised inset wood burning stove with flexible operating modes, high output and a cleaner architectural finish.
Installation / Technical Notes

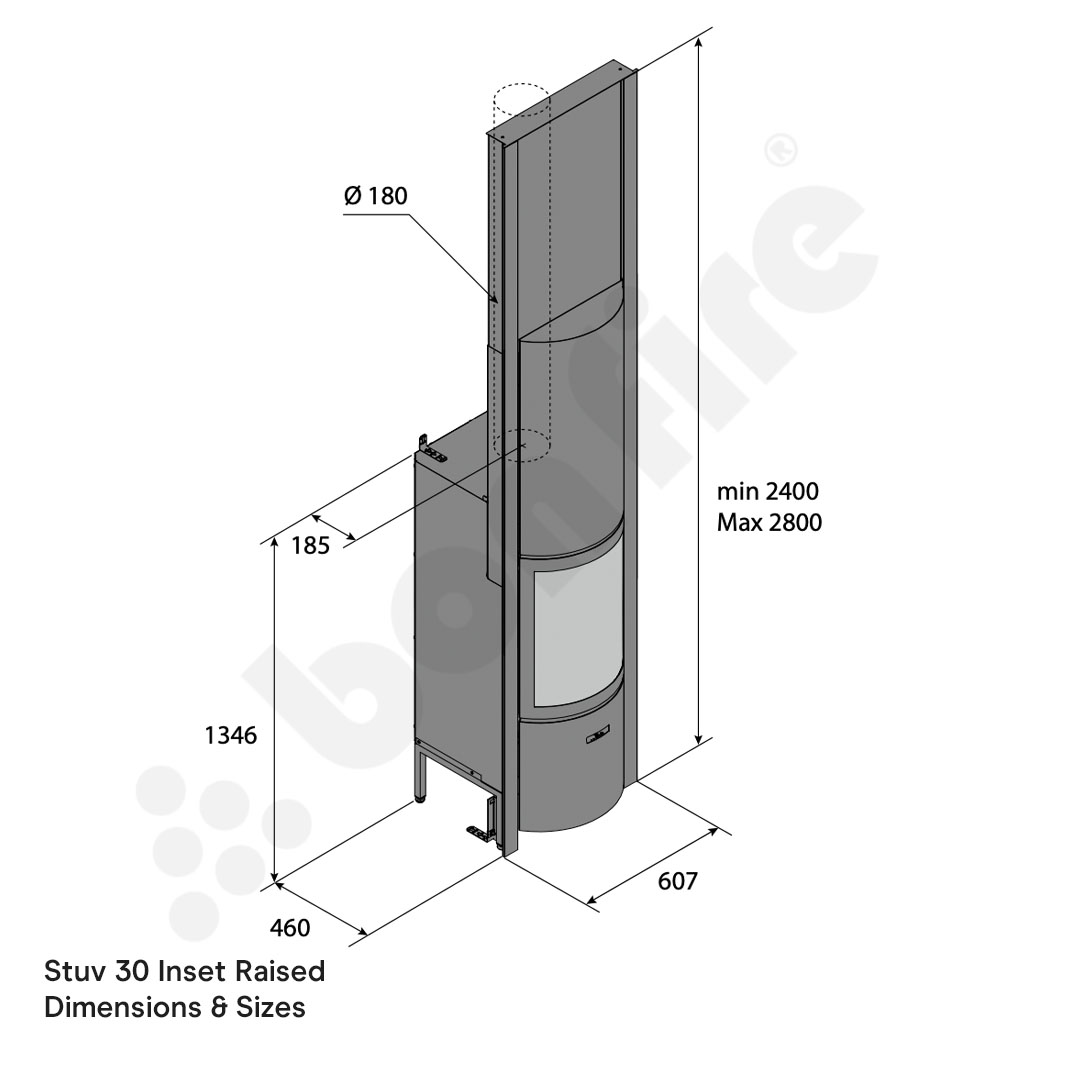

The stove is made from steel and refractors and finished in Stûv grey. It has a 180 mm top flue outlet, 150 mm hot-air outlets and a 100 mm outside air inlet. The stated weight is 200 kg. It supports manual loading, accepts horizontal logs up to 50 cm or vertical logs up to 33 cm, and has a nominal draw of 12 Pa, smoke mass flow of 9.2 g/s and average smoke temperature of 346°C. It conforms with ECODESIGN 2022, BE Phase 3 and DEFRA.
