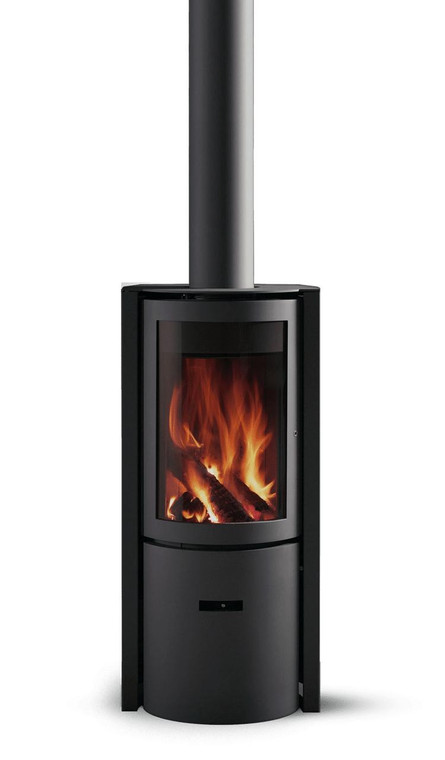

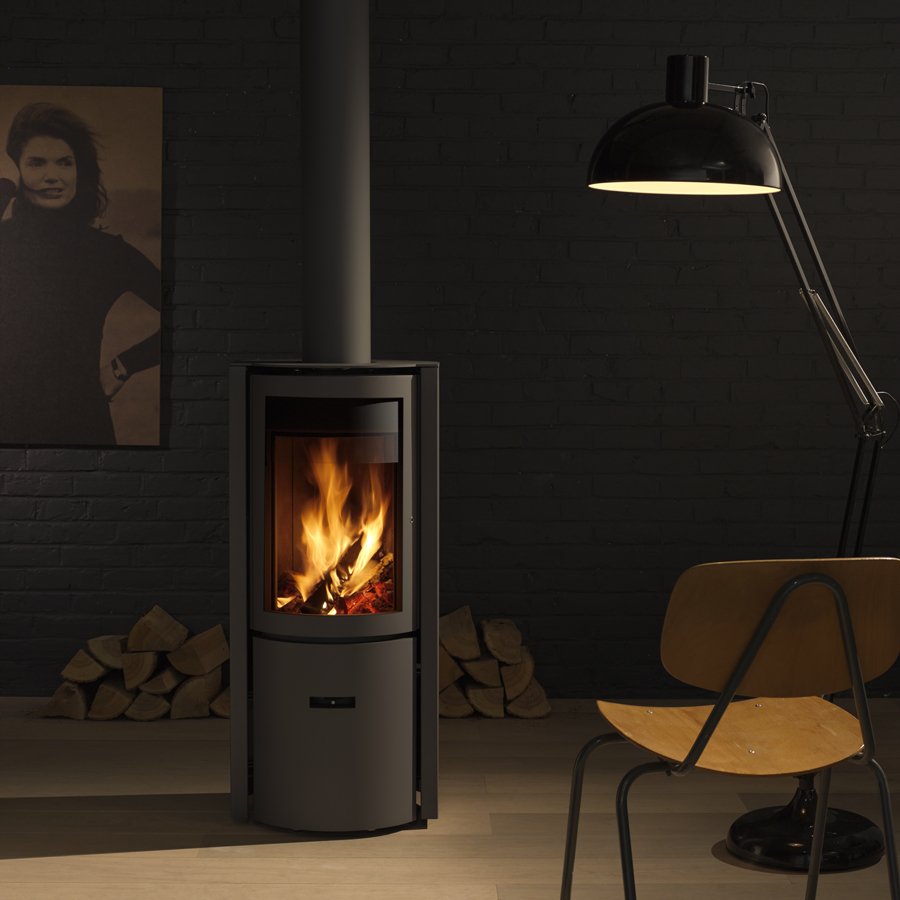

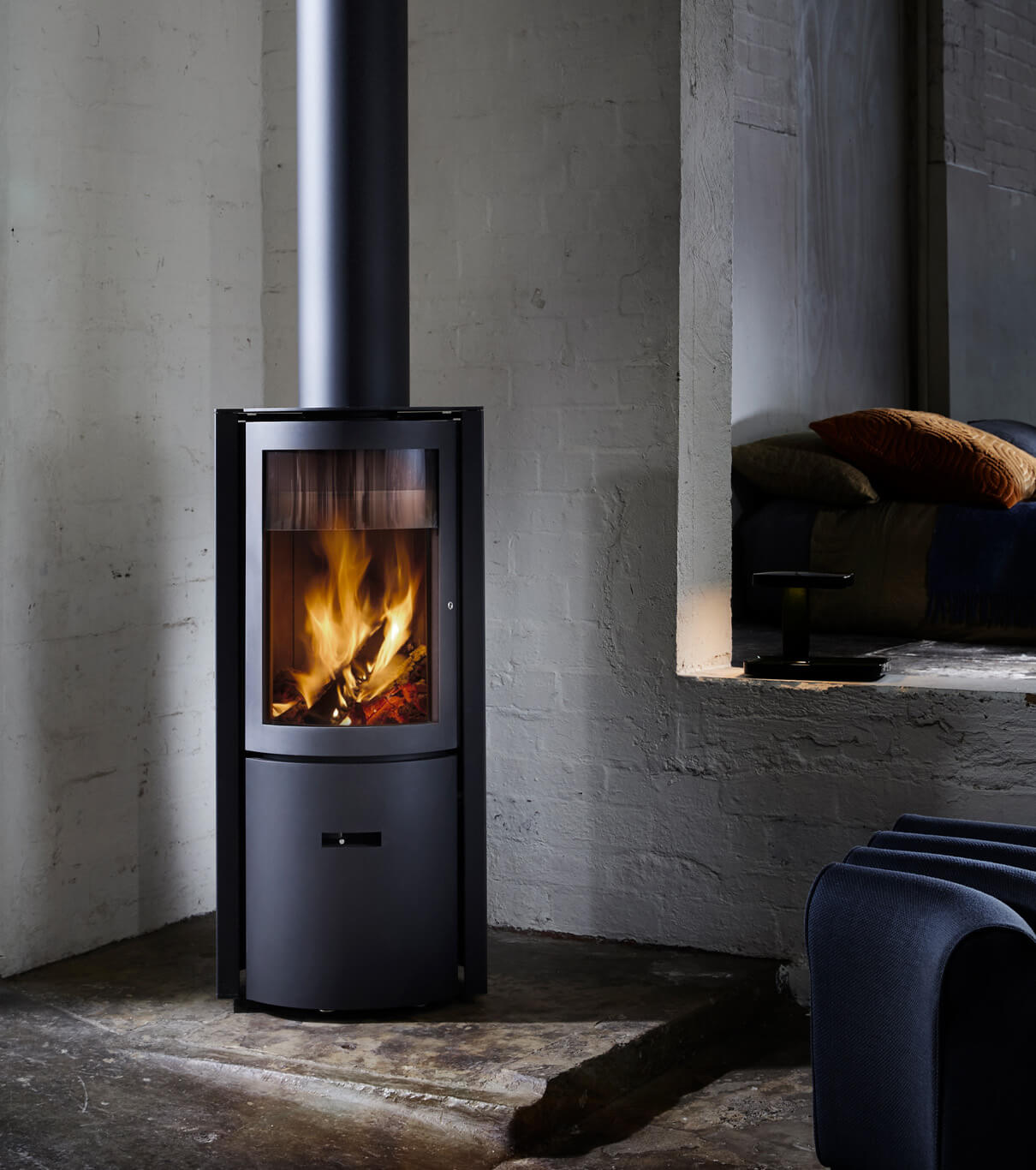

The Stûv 30-compact wood burning stove is a compact cylindrical stove designed to deliver flexible, efficient heating with a strong emphasis on usability and fire control. Created as the compact version of the Stûv 30, it is particularly suited to low-energy homes and compact dwellings, while still offering an adjustable heat output from 3 to 9 kW.
What makes this stove stand out is its 3-door system. By rotating the drum, you can bring the door you need to the front of the stove opening. The glass door gives a wide, uninterrupted view of the flames while supporting safety, output and efficiency. The solid door is designed to slow the fire and optimise performance, while the loading door allows safer refuelling. This gives the stove a different level of flexibility from a fixed single-door design, as the fire can be managed in different ways depending on whether the priority is flame view, burn control or refuelling.
The Stûv 30-compact is also built around efficient combustion and controlled airflow. It can be connected to outside air, either from beneath the appliance or from the rear. This can improve the total performance of the installation by drawing combustion air from outside the building rather than using heated room air. The sealed combustion circuit is also designed so it does not disturb Controlled Mechanical Ventilation. The product information further explains that convection air circulates around the combustion chamber, captures heat from the smoke and then exits naturally into the room, while forced airflow helps keep the viewing window cleaner for longer. A built-in ash container is also included.
Key Features:
- Compact version of the Stûv 30
- Designed for low-energy homes
- Suitable for compact dwellings
- Adjustable output from 3 to 9 kW
- 3-door rotating drum system
- Glass door for flame view

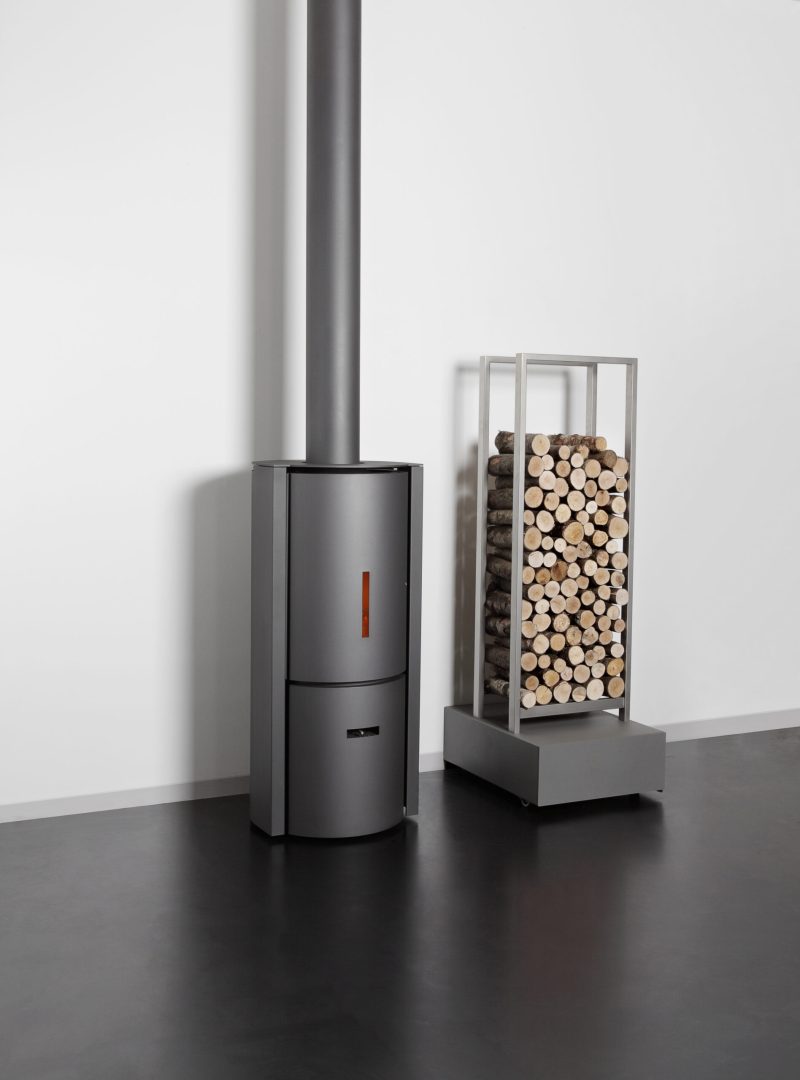

- Solid door for slower burn and optimised performance
- Loading door for safer refuelling
- Efficient combustion
- Glass stays clean for longer
- External air connection under or behind the stove
- Airtight combustion circuit
- Compatible with Controlled Mechanical Ventilation
- Built-in ash container
- Optional barbecue kit
- Optional floor plates
- Dimensions: 1040 x 465 x 447 mm
Expert Insight
The most technically important feature here is the combination of the rotating 3-door system and the external air connection. The door system gives genuine control over how the stove is used, rather than simply changing the appearance. Meanwhile, outside air connection is especially relevant in lower-energy or more airtight homes, because it allows combustion air to be drawn from outside and helps avoid disrupting the ventilation balance inside the building.
The note about leaving a bed of ash in the combustion chamber is also useful. This reflects good operating practice for many stoves, as the ash layer helps insulate the chamber and base plate from the direct heat of combustion rather than requiring constant full clean-out.
Suitability
The Stûv 30-compact is well suited to low-energy properties, compact homes and interiors where efficient heating and design flexibility are equally important. It is a strong choice for customers who want a more advanced wood burning stove with excellent flame view, adaptable door functions and the option to connect to external air.
Installation / Technical Notes

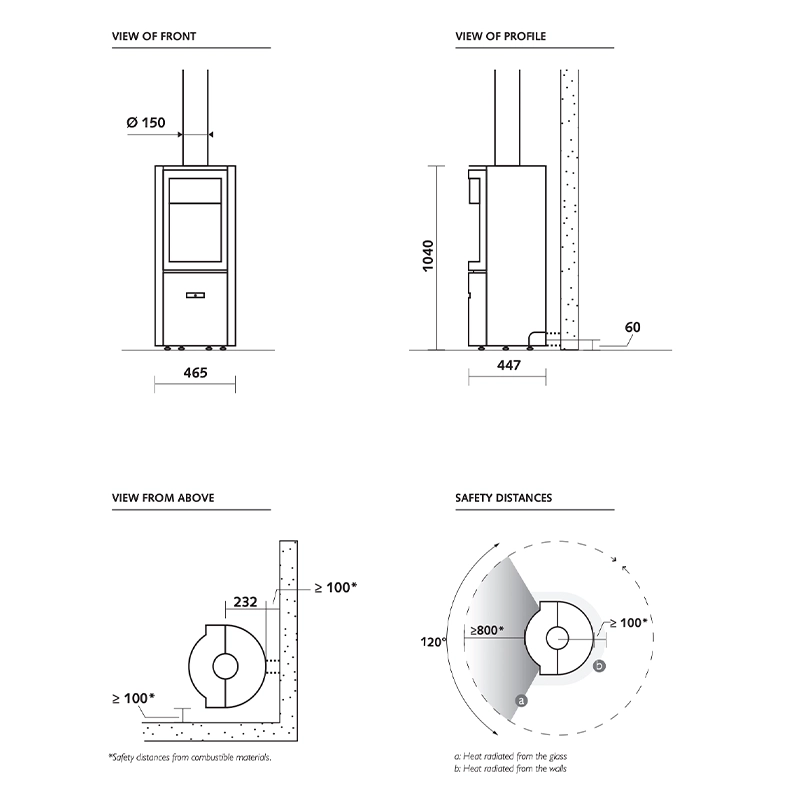

The stove measures 1040 mm high, 465 mm wide and 447 mm deep. It can be connected to outside air either under the appliance or behind the stove. The stated heat output range is 3 to 9 kW. Optional accessories mentioned in the product data include a barbecue kit and floor plates.

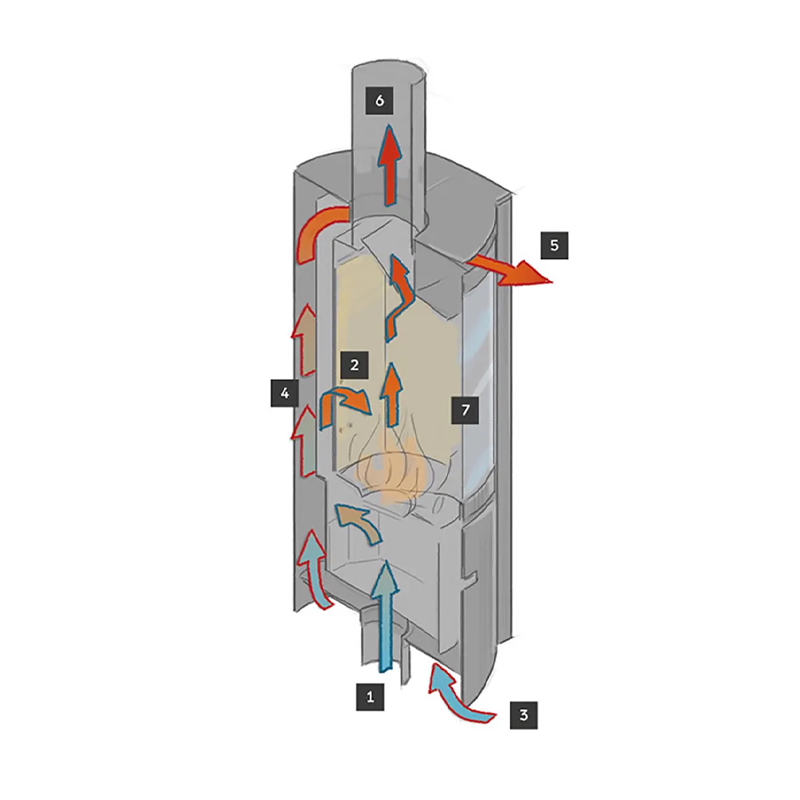

Operating Mode:
The stove can draw combustion air from a direct external air intake, positioned either beneath or behind the appliance, creating an airtight system through the air supply, combustion chamber and flue.
As the stove burns, convection air moves around the chamber to capture heat from the smoke, naturally releasing warm air into the room while an airwash system helps keep the glass clear for a better view of the flames.

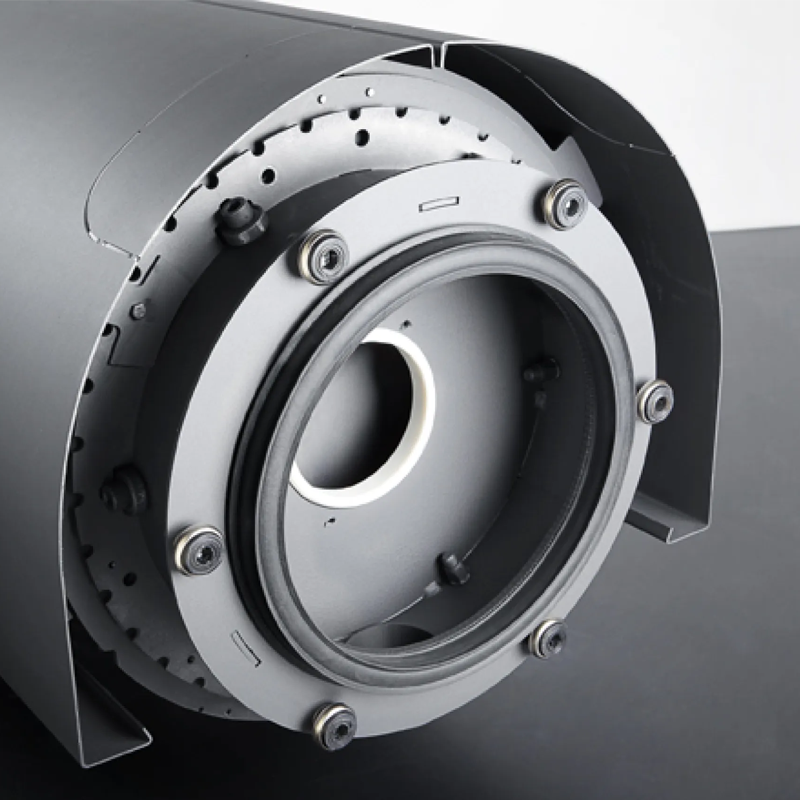

Outside Air Kit:
The Stuv 30 Compact One can be connected to the outside air, either under the device or behind the stove.

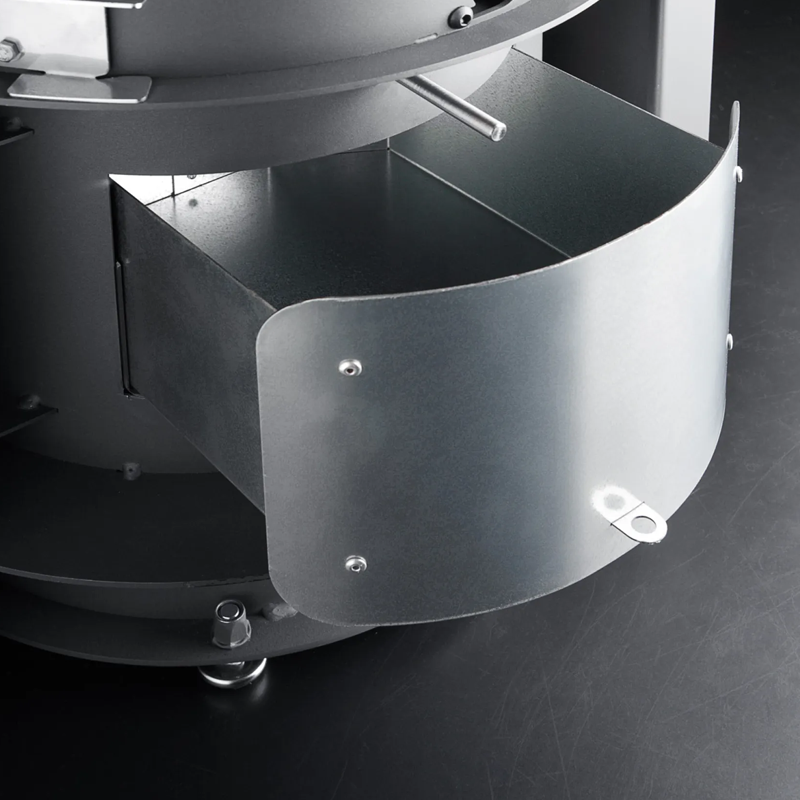

Ash Container:
Even though not to be used often, this stove has a built in ash container.

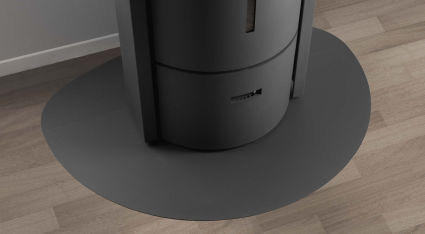

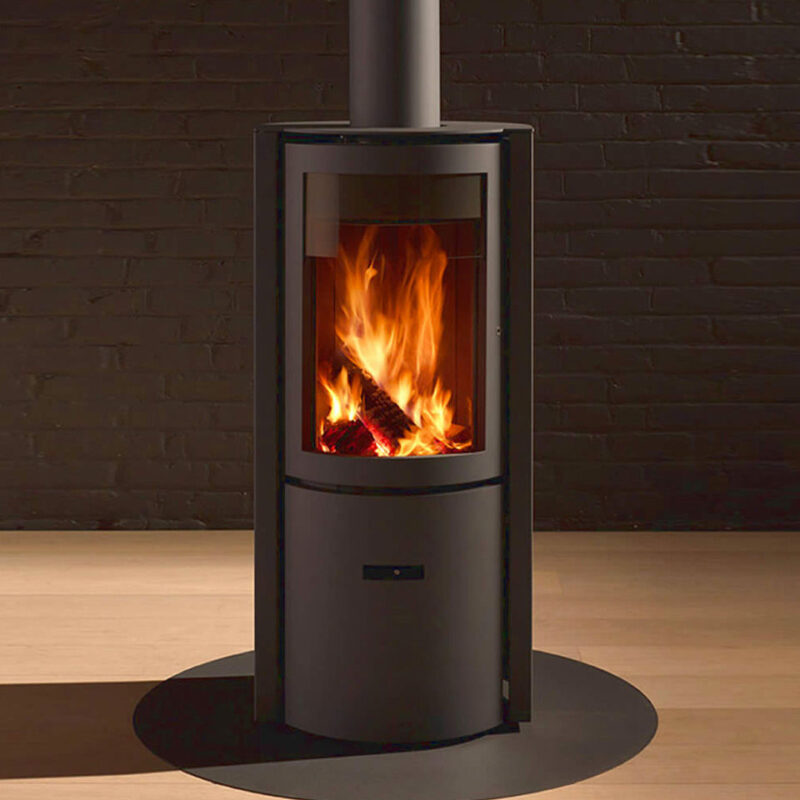

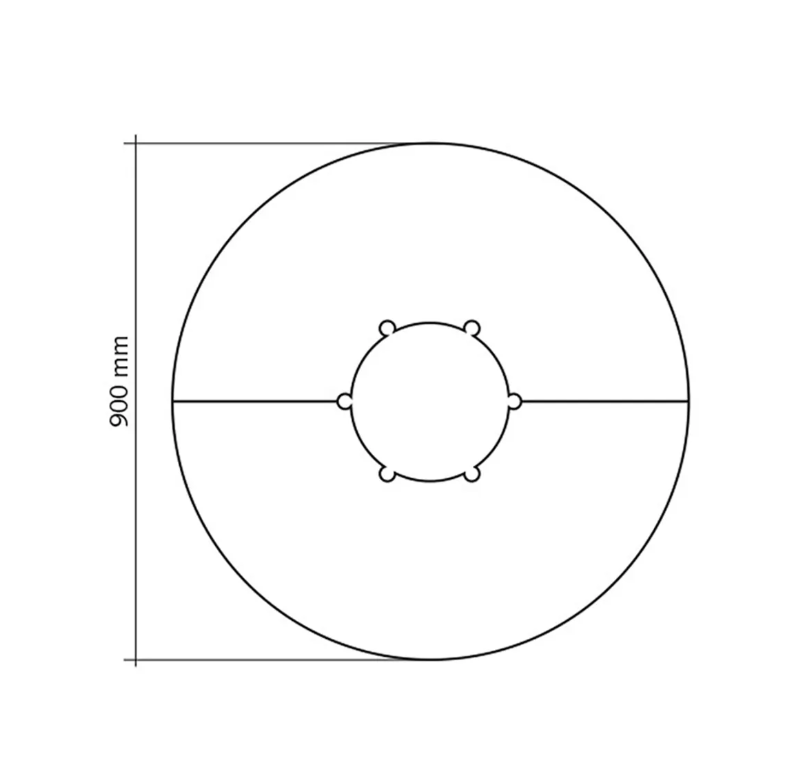

Floor Plate Option:
Optional circular or oval floor plates that are specifically designed for this stove.
Barbecue Option:
An optional bbq kit can be fitted to the front to work with radiant heat to cook food.
