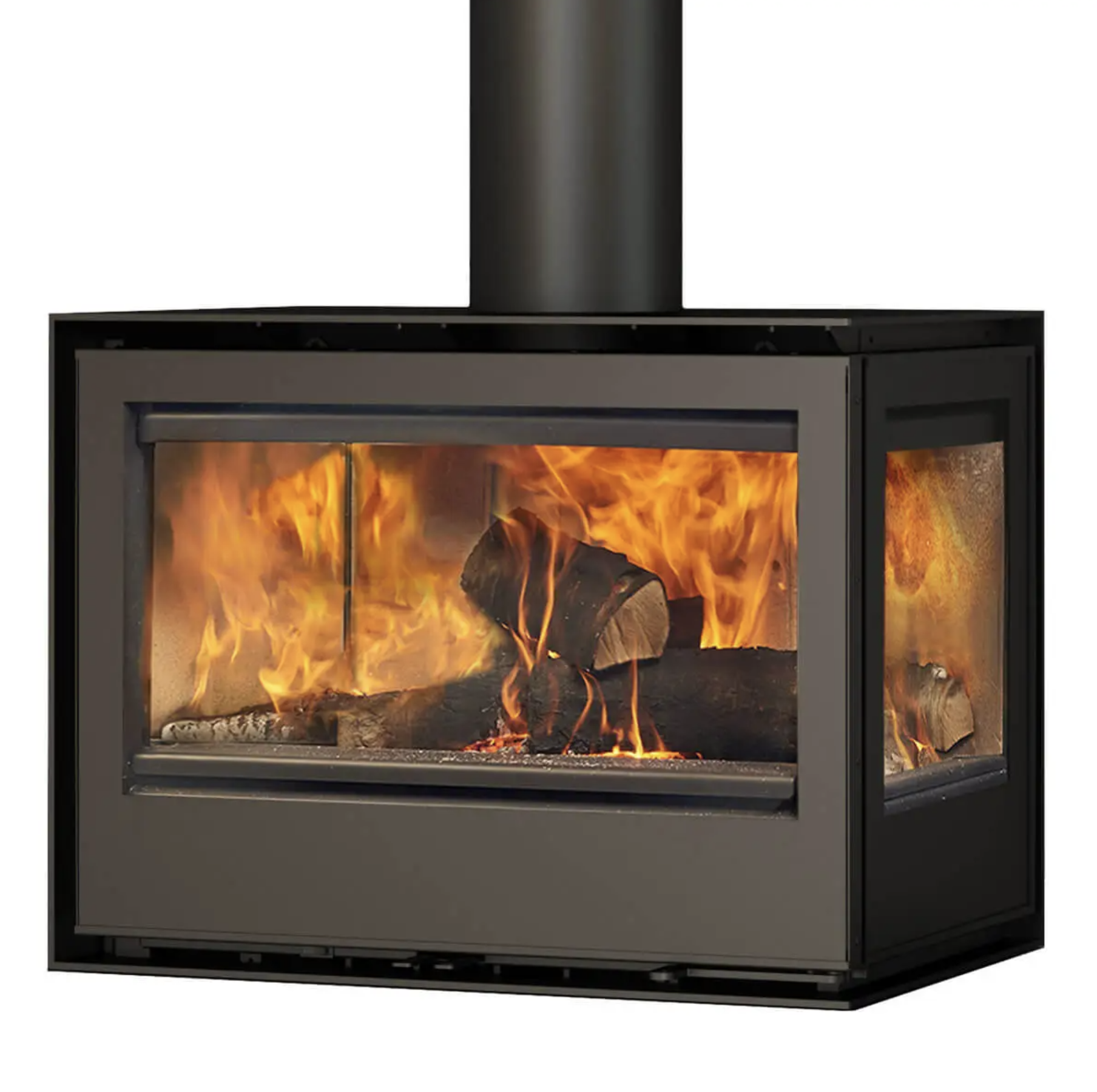

The Rocal Habit 76 LD hearth mounted wood-burning stove is a 9.4kW contemporary stove with right side glass, designed to give a wider flame view from both the front and right-hand side. With 77.3% efficiency, an A energy rating and an output range of 6.5–11.5kW, it delivers strong wood-burning performance in a clean hearth mounted format.
The right side glass version is ideal where the stove is positioned so the right-hand side remains visible from the room. This allows the fire to be viewed from more than one angle, giving the appliance a more open and architectural feel than a standard front-facing stove.
The hearth mounted format keeps the installation simple, low and grounded. It works well in suitable fireplace openings, on stove hearths and in contemporary room designs where a logstore, wall bracket or bench base is not required.
At 75.5cm wide, the Habit 76 LD offers a generous fire view without the scale of the larger Habit models. Its 9.4kW nominal output makes it suitable for rooms that need a meaningful heat source, while the black finish gives it a clean modern appearance.
Optional fan-assisted convection can be added to help push heat further into the room, using two fans to improve circulation in larger spaces. This option requires an electricity supply, while natural convection is available as standard.
The stove supports an external air supply from the rear or base, giving useful flexibility during installation planning. A reversible door opening allows the appliance to be configured around the room layout, while matching Rocal flue pipe lengths are available for a more coordinated connection above the stove.
Key Features
- 9.4kW nominal heat output
- 77.3% efficiency rating
- A energy rating
- Right side glass model
- Front and right-side flame view
- Hearth mounted version
- 75.5cm wide stove body
- Output range of 6.5–11.5kW
- 180mm flue diameter
- External air supply from rear or base
- Optional fan-assisted convection
- Two convection fans provide 135m³/h airflow when selected
- Natural convection option available
- Reversible door opening for layout flexibility
- Black finish
- Matching painted Rocal flue pipe lengths available
- Made to order with an estimated 4–8 week lead time
Expert Insight
The right side glass format should be selected when the right-hand side of the stove will remain visible and add value to the room layout. The hearth mounted version is the simplest presentation style, making it suitable for fireplace openings and clean stove hearths. External air routing, fan power supply, flue position and door opening direction should all be considered early so the final installation works well in daily use.
Suitability
The Rocal Habit 76 LD hearth mounted wood-burning stove is best suited to contemporary living rooms, fireplace openings and modern stove installations where a right-side flame view is preferred. It is ideal for customers wanting a clean hearth mounted stove with side glass, external air compatibility and strong wood-burning performance.
Installation / Technical Notes
This model has a 180mm flue diameter and supports an external air supply from the rear or base. Fan-assisted convection is optional and requires an electricity supply. The stove includes a reversible door opening for layout flexibility. Matching Rocal flue pipe lengths are available in 49cm, 99cm, 149cm and 198cm options. This model is made to order, with an estimated lead time of 4–8 weeks.
