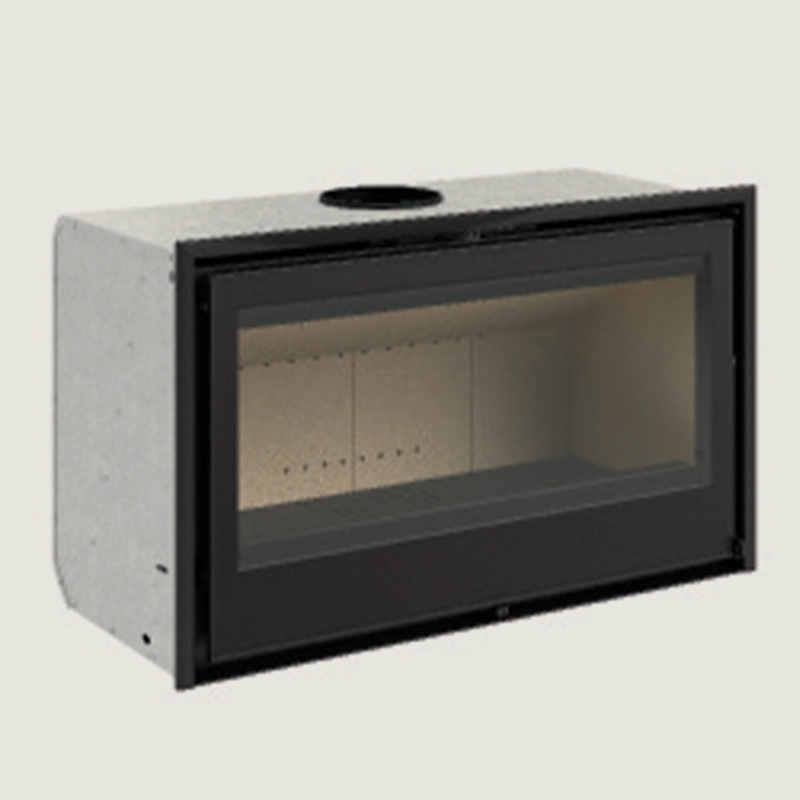

The Rocal RCr 100 Inset Wood Burning Stove is a large-format built-in wood burning fireplace designed for clean architectural integration, strong heat performance and flexible installation. As part of the Rocal RCr Frontal range, the RCr 100 can be adapted to both existing fireplaces and new construction fireplace openings, making it a strong choice for contemporary projects that want the look of a minimalist inset fire with serious heating capability.
Its subtle front-facing design allows it to integrate neatly into the wall, making it especially well suited to minimalist interiors and modern fireplace settings. The wider format of the RCr 100 gives a more expansive flame view and greater presence within the room, while the understated fascia helps the fire sit cleanly within the surrounding architecture.
The RCr 100 is built as a fully welded steel appliance with a steel combustion chamber, vermiculite interior lining and triple deflector system. It uses preheated primary and secondary air together with tertiary or safety air to support efficient combustion, cleaner burning and a more controlled flame picture. The appliance also features a non-sealed external air inlet, with an optional external air closure valve available where required.
One of the key practical strengths of the Rocal RCr 100 is its ability to direct and channel hot air to other parts of the house. The surrounding casing is designed to allow hot air distribution, and the appliance includes front/top air direction control so the installation can be adapted to suit the layout of the project. A 4-turbine ventilation kit is available, offering two automatic speeds and one manual speed, helping to improve heat circulation where a more active warm air distribution system is required.
The stove also includes front ash drawer extraction for easier maintenance and a reversible front door for greater installation flexibility. Optional accessories such as a 10 cm decorative frame, adapter for a standard four-sided frame, adjustable and levelable base, regulator, inlet/outlet diffusers, log holders, and the option to supply the unit without ventilation kit on request make it easier to tailor the appliance to the needs of each fireplace project.
With an 84.4% efficiency, 12.3 kW nominal output, and a working range of 8.5 to 14.5 kW, the RCr 100 is a powerful inset wood burner suitable for larger spaces or homes where additional heat movement is beneficial. 7″ (180mm) flue diameter.
Key Features:
- Large inset wood burning stove
- Front-facing built-in fireplace design
- Suitable for existing fireplaces or new build projects
- Fully welded steel construction
- Steel combustion chamber
- Vermiculite interior lining
- Triple deflector system
- Preheated primary and secondary air
- Tertiary or safety air
- Non-sealed external air inlet
- Front ash drawer extraction
- Reversible front door
- Front/top air direction control
- Can channel hot air to other parts of the house
- Optional 4-turbine ventilation kit
- Nominal output 12.3 kW
- Output range 8.5 to 14.5 kW
- Efficiency 84.4%
- Weight 144 kg
Expert Insight
The Rocal RCr 100 is a strong choice for customers who want a built-in wood burning fireplace with more than just a clean look. Its higher output and optional warm air distribution make it particularly useful in larger open-plan rooms or projects where the fire needs to contribute more meaningfully to overall heating.
The combination of a wide minimalist front, strong efficiency and flexible installation options gives it good appeal for both design-led renovations and new architectural builds.
Suitability
The Rocal RCr 100 Inset Wood Burning Stove is well suited to modern living rooms, architectural fireplace walls, open-plan interiors, and new build or renovation projects where a large front-facing inset wood burner is wanted with the ability to distribute hot air more effectively.
Installation / Technical Notes
The RCr 100 offers 84.4% efficiency, 12.3 kW nominal heat output, and an operating range of 8.5 to 14.5 kW. Emissions include 0.084% CO, 15 mg/Nm3 fine particles, 105 mg/Nm3 NOx, and 38 mg/Nm3 CnHm, with wood consumption of 3.3 kg/h and a total weight of 144 kg. Optional elements include a standard four-sided frame adapter, 10 cm decorative frame, inlet/outlet diffusers, log holders, adjustable and levelable base, regulator, external air closure valve, and the option for no ventilation kit on request.
