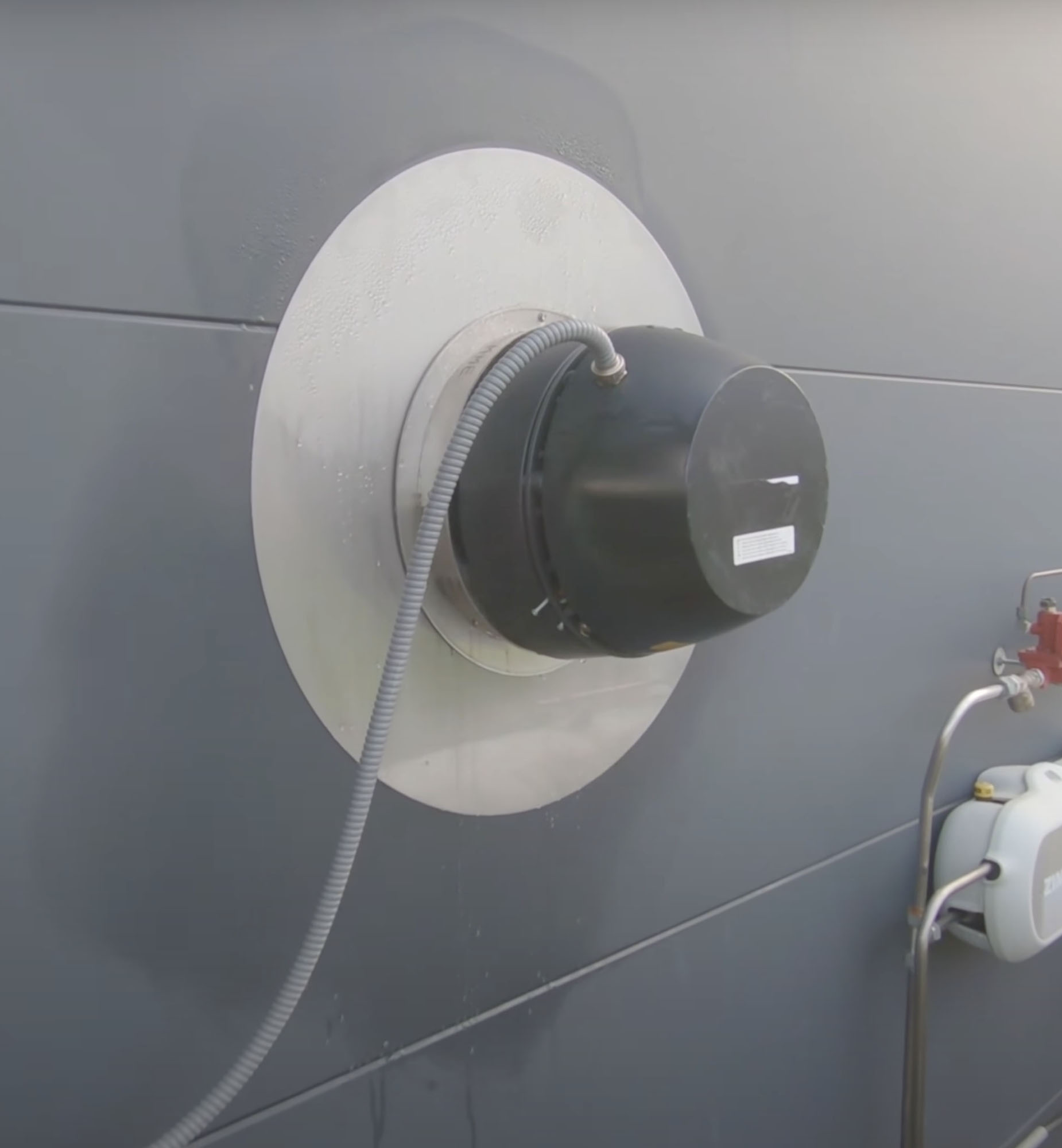

Exodraft’s RHGC160-41 80/125 chimney fan is a high-performance solution designed to address the challenges of complex chimney and flue systems. Whether installed vertically on a chimney or horizontally on a wall, this fan is engineered to ensure optimal draft in a variety of settings, including commercial and industrial applications. With the ability to handle chimneys with up to 15 bends of 90 degrees and a maximum length of 60 meters, the RHGC160-41 80/125 provides reliable performance in demanding environments.

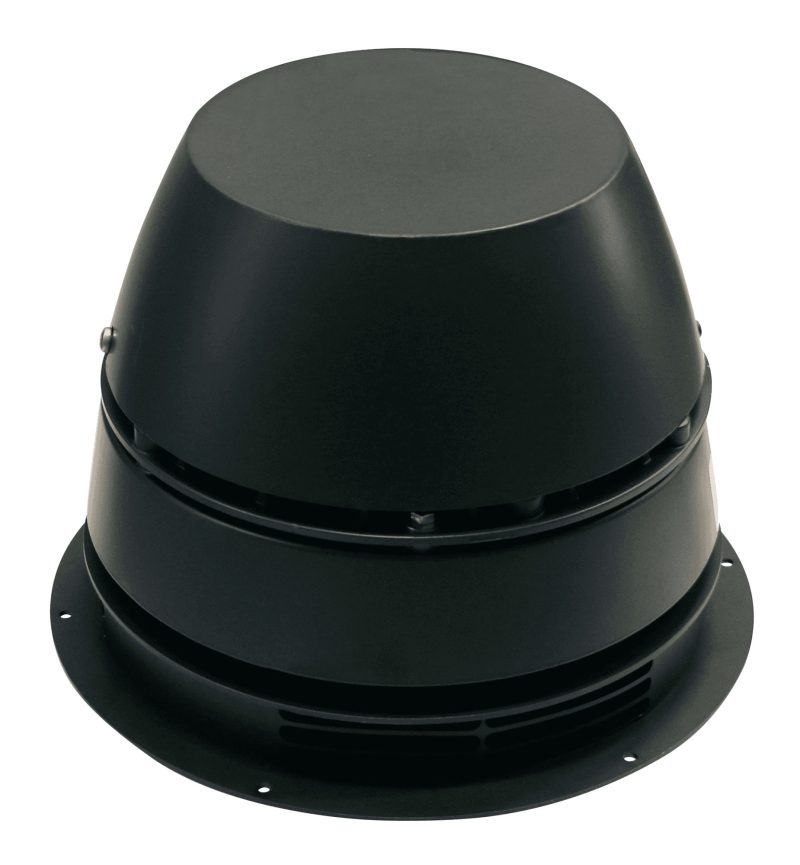

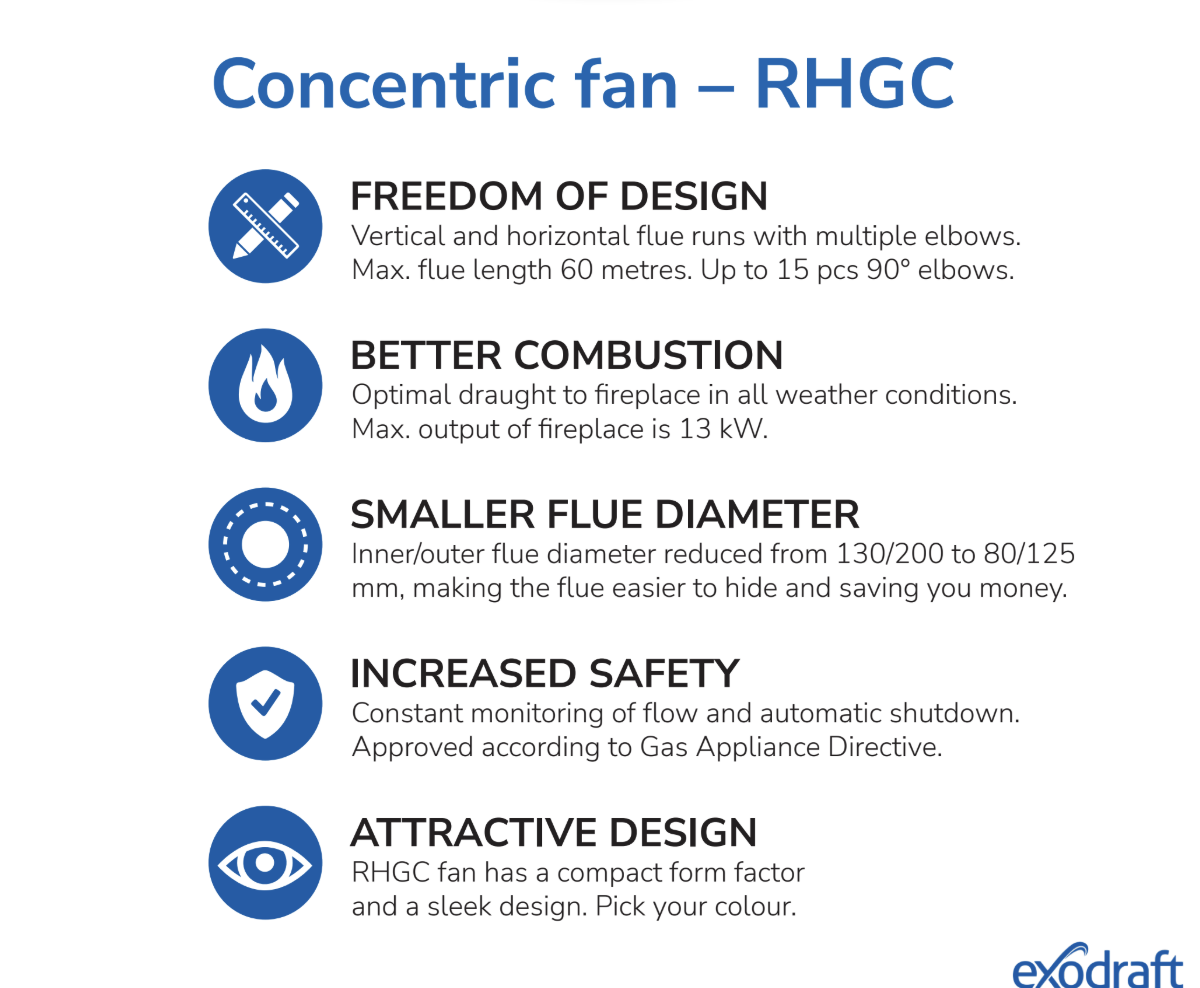

Wall or top-mounted concentric chimney fan
The RHGC160-41 80/125 fan works by creating negative pressure in the flue pipe and chimney, promoting the efficient removal of exhaust gases and improving the combustion process. It is specifically designed for use with concentric chimney systems, which means it extracts the flue gases from the fireplace while simultaneously supplying the unit with fresh combustion air, enhancing efficiency and safety. This chimney fan is ideal for gas installations, where the maximum gas supply does not exceed 13 kW, ensuring the system operates within its designed parameters.
One of the standout features of the RHGC160-41 80/125 is its fail-safe function, which adds an extra layer of security. The built-in monitoring system, which includes a pressure switch and flow measurement system, continuously monitors the performance of the chimney fan. The system is designed to shut off the gas supply if insufficient draft is detected, preventing potential gas leaks. For proper monitoring, the Exodraft EFC21 control unit must be connected to the pressure switch, ensuring real time feedback on system performance.
Constructed from corrosion resistant aluminum, the RHGC160-41 80/125 chimney fan is built to withstand continuous temperatures up to 200°C. The motor is housed in a temperature resistant enclosure and works in tandem with a centrifugal wheel and cooling air openings to maintain optimal cooling, thus ensuring the longevity of the motor and overall fan system. All components, including screws and bolts, are made from stainless steel to resist corrosion and guarantee long lasting reliability.
The RHGC160-41 80/125 fan is designed with easy installation in mind, offering flexibility in placement, whether in vertical or horizontal orientations. It is lightweight, weighing only 10 kg, yet robust enough to provide efficient performance over an extended service life. This chimney fan operates at a maximum rotation speed of 1400 RPM, requiring a voltage of 1 x 230V and drawing 0.40 amperes of current for a total power consumption of 0.09 kW.
In summary, the RHGC160-41 80/125 chimney fan by Exodraft is a versatile, durable, and secure solution for creating the ideal draft in complex chimney systems. It combines reliable performance with safety features and ease of installation, making it an excellent choice for gas installations in both commercial and industrial applications.
Control Options
Isolation Switch
An isolation switch is a legal requirement that ensures the chimney fan can be safely disconnected from the electrical current, particularly for tasks like chimney sweeping.
Documentation
Exodraft Technical Data: Datasheet__RHGC_UK
Exodraft Specification: Manual_RHGC_UK
