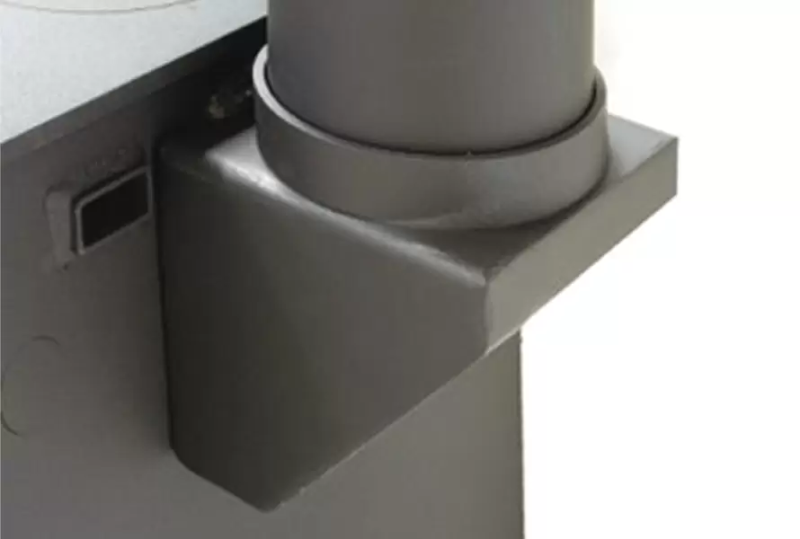

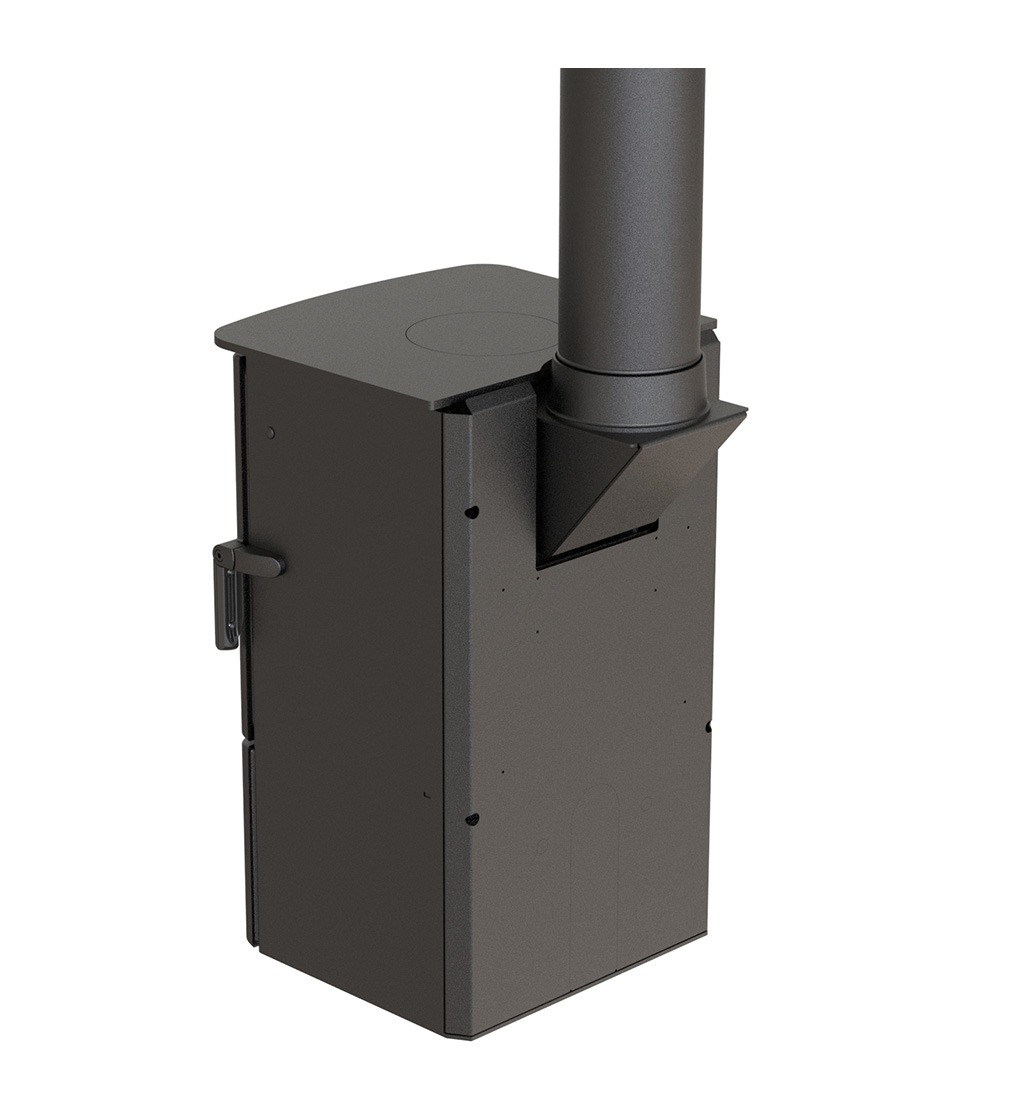

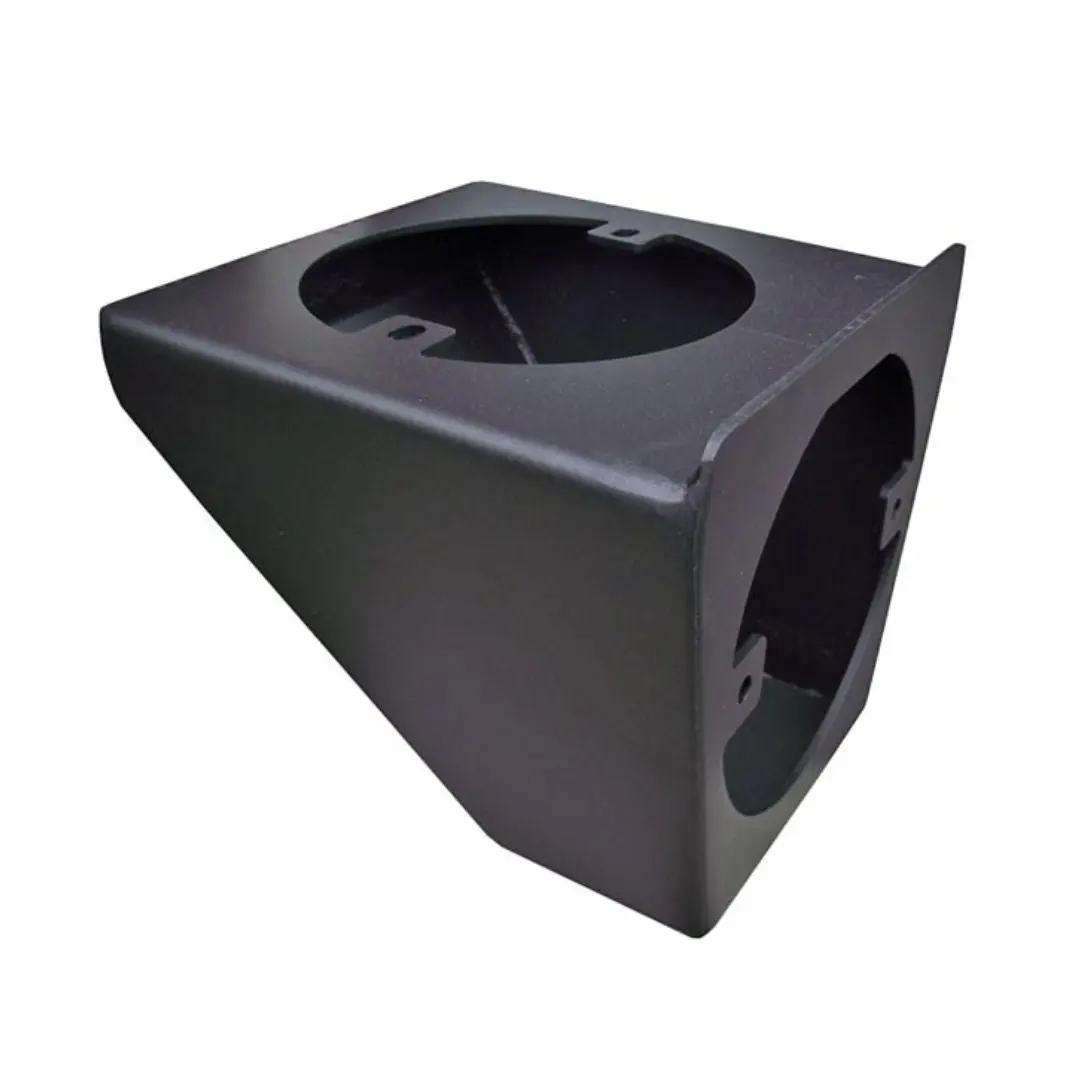

The Charnwood Vertical Rear Flue Adaptor is a genuine Charnwood stove accessory designed to allow a compatible stove to connect from the rear while directing the flue vertically upwards.
This arrangement allows the stove to be positioned further forward into the room and away from the wall behind, providing greater flexibility when planning a stove and chimney installation.
Depending on the stove model, fitting the vertical rear flue adaptor increases the overall depth of the appliance by approximately 115mm to 196mm.
What Is a Vertical Rear Flue Adaptor For?
A vertical rear flue adaptor is useful where you want the flue connection to leave the rear of the stove but then continue vertically upwards.
It can help provide additional clearance behind the appliance, accommodate an existing chimney or flue position, or simply allow the stove to sit further forward within a fireplace opening.
Available Sizes
The Charnwood Vertical Rear Flue Adaptor is available in different diameters depending on the stove model.
125mm / 5″ Vertical Rear Flue Adaptor
Charnwood part number: 010/BU034
Suitable for selected models including:
- Aire 3 / Aire 300
- Aire 4 / Aire 400
- Cranmore 3
- Arc 5
- Country 4
- C-Four
- C-Four Duo
- C-Five
- C-Five Duo
- Bembridge
- Skye 5
- Island I
150mm / 6″ Vertical Rear Flue Adaptor
Charnwood part number: 010/TW33
Suitable for selected models including:
- Aire 5 / Aire 500
- Aire 7 / Aire 700
- Arc 7
- C-Six
- C-Seven
- C-Eight
- Cove 2
- Cranmore 5
- Cranmore 7
- Island II
- Skye 7 / E700
178mm / 7″ Vertical Rear Flue Adaptor
The 178mm / 7″ version is designed for selected larger Charnwood models including:
- Cove 3
- Island III
Why Use a Vertical Rear Flue Adaptor?
- Allows rear flue connection
- Provides vertical flue outlet
- Moves stove away from wall
- Helps with chimney alignment
- Provides installation flexibility
- Genuine Charnwood component
Additional Stove Depth
Installing the adaptor increases the total depth of the stove installation by approximately 115mm to 196mm, depending on the stove model and adaptor required.
This should be taken into account when planning the position of the stove, hearth, fireplace opening and surrounding clearances.
Choosing the Correct Size
The correct adaptor depends on the Charnwood stove model and its required flue diameter.
The available options are:
- 125mm / 5″
- 150mm / 6″
- 178mm / 7″
Always select the adaptor specified for your particular Charnwood stove rather than choosing solely by the apparent size of an existing flue.
Genuine Charnwood Accessory
This is a genuine Charnwood accessory designed specifically for use with compatible Charnwood wood burning and multi-fuel stoves.
Using the correct manufacturer-approved component helps ensure the flue connection is properly matched to the appliance and installation requirements.
Need Help Choosing?
If you are unsure which Charnwood Vertical Rear Flue Adaptor is required for your stove, contact our team with the Charnwood model and we can help identify the correct size and part.
