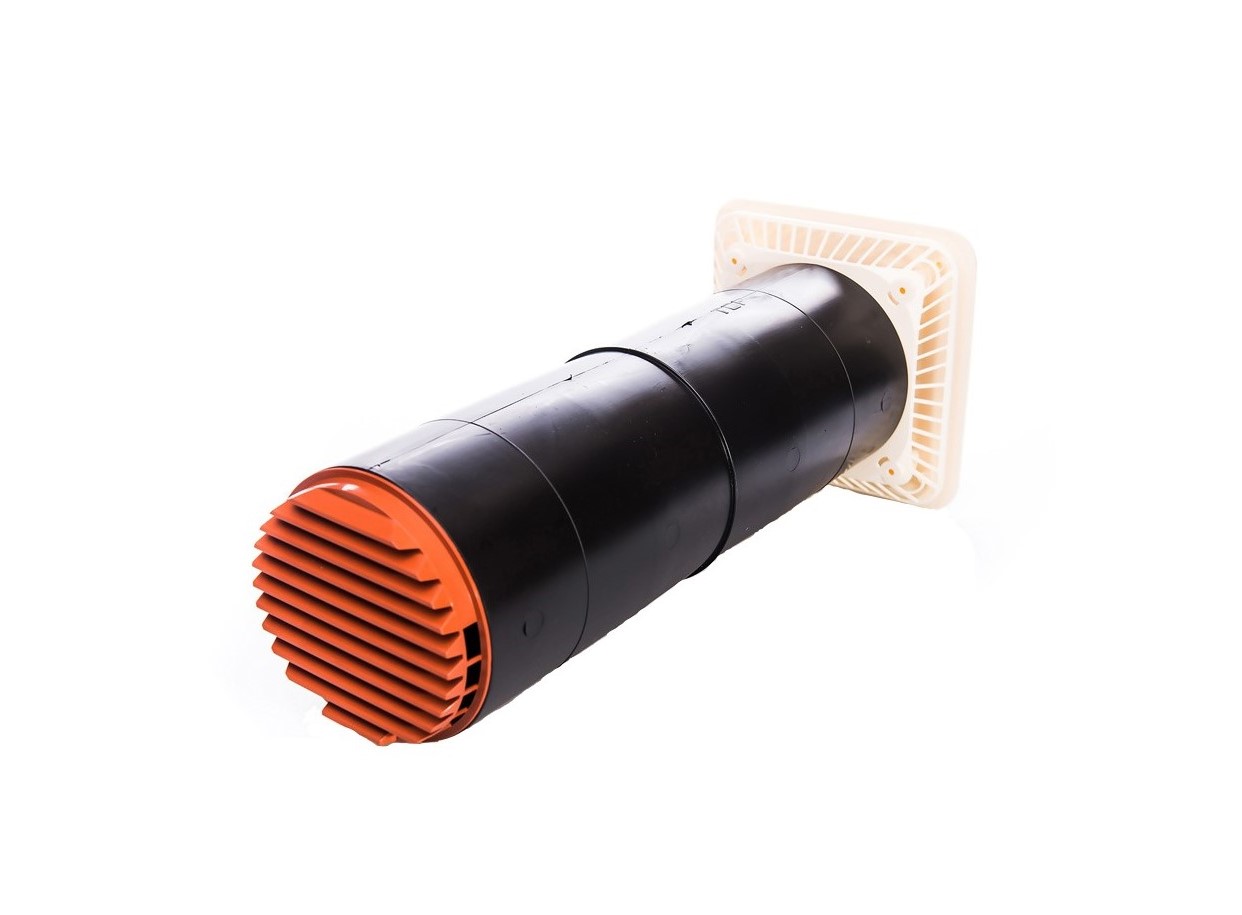

The Rytons 125mm High Rise LookRyt AirCore Vent provides a practical and discreet solution for supplying permanent combustion air to wood burning stoves, fireplaces and boilers. Designed for retrofit installations, the ventilator can be fitted entirely from inside the building, removing the need for external fixing.
With an equivalent ventilation area of 68cm² (6,800mm²), the AirCore incorporates internal baffles to help minimise unwanted draughts and light penetration while maintaining airflow to the appliance.
Discreet Design and Improved Comfort
The LookRyt internal panel distributes incoming air more evenly to improve comfort within the room. Its low-profile design can be painted or wallpapered to complement the surrounding interior, making it particularly suitable for living rooms and fireplace installations.
The external grille is UV-stabilised to help resist the effects of sunlight, while an integrated water baffle helps prevent water transferring across the wall cavity.
Key Features
- Internal installation: Designed to be retrofitted entirely from inside the property.
- Combustion ventilation: Suitable for providing permanent air supply to compatible boilers, stoves and fires.
- Draught reduction: Internal baffles help reduce incoming draughts and light penetration.
- Discreet appearance: Paintable or wallpaperable LookRyt internal panel.
- Water protection: External water baffle helps prevent moisture transfer across the cavity.
- Durable construction: UV-stabilised external grille.
- Solid fuel applications: HETAS approved for use with solid fuel appliances.
- Rendered finishes: Suitable for applications where external fixing is undesirable.
Technical Specifications
- Manufacturer: Rytons
- Product: High Rise LookRyt AirCore
- Nominal diameter: 125mm
- Tube diameter: 127mm (5″)
- Tube length: 358mm
- Tube adjustment: Up to 63mm may be trimmed from each end if required.
- Internal LookRyt panel: 172mm wide x 172mm high
- Equivalent ventilation area: 6,800mm² (68cm²)
- FDC product code: VACH75LP
- LookRyt panel patent: GB 2490138
Suitable Applications
The Rytons High Rise AirCore is suitable for installations requiring a permanent combustion air vent, including compatible wood burning stoves, multi-fuel stoves, open fires and boilers.
Its internal fitting method is particularly useful for properties with rendered external walls or installations where external access is restricted.
Installation Information
The ventilator must be installed in accordance with the manufacturer’s instructions and applicable Building Regulations. The required ventilation area should be confirmed by a suitably qualified installer based on the appliance, property and installation conditions.
Important: Permanent combustion ventilation must not be blocked or restricted during appliance operation.
Order Your Rytons AirCore Vent from Bonfire
At Bonfire, we supply a range of combustion air vents, chimney and flue components for domestic fireplace and stove installations. Our experienced team can assist with product selection and installation enquiries.
Contact Bonfire for further advice or assistance with your project.
