The Exodraft Solution 6 Chimney Fan Package provides a complete mechanical chimney draught solution for an open fireplace or two stoves connected to a brick or element chimney terminating below the roof ridge line.
At the heart of the package is the Exodraft RSV012 chimney fan. Installed at the top of the chimney, it creates controlled negative pressure within the flue system to help establish and maintain a reliable chimney draught. The RSV012 provides vertical flue-gas discharge, making it particularly suited to the specified below-ridge installation.
What Is Solution 6 For?
Solution 6 is designed for more demanding solid-fuel installations where a larger chimney fan is required, including an open fireplace or two stoves connected to a brick or element chimney.
- Open fireplaces
- Two stove installations
- Multiple fireplace applications
- Wood-burning appliances
- Brick chimney systems
- Element chimney systems
- Below-ridge chimney terminations
It can be especially useful where natural chimney draught is affected by chimney height, fireplace opening size, multiple appliances, surrounding buildings, wind conditions or the position of the chimney termination.
Complete Chimney Draught Package
Exodraft Solution 6 combines the chimney fan, control system and required installation accessories into one convenient package for the specified application.
Three control options are available: EFC16, EFC18V2 and Xzense, allowing the system to be matched to the preferred level of control and automation.

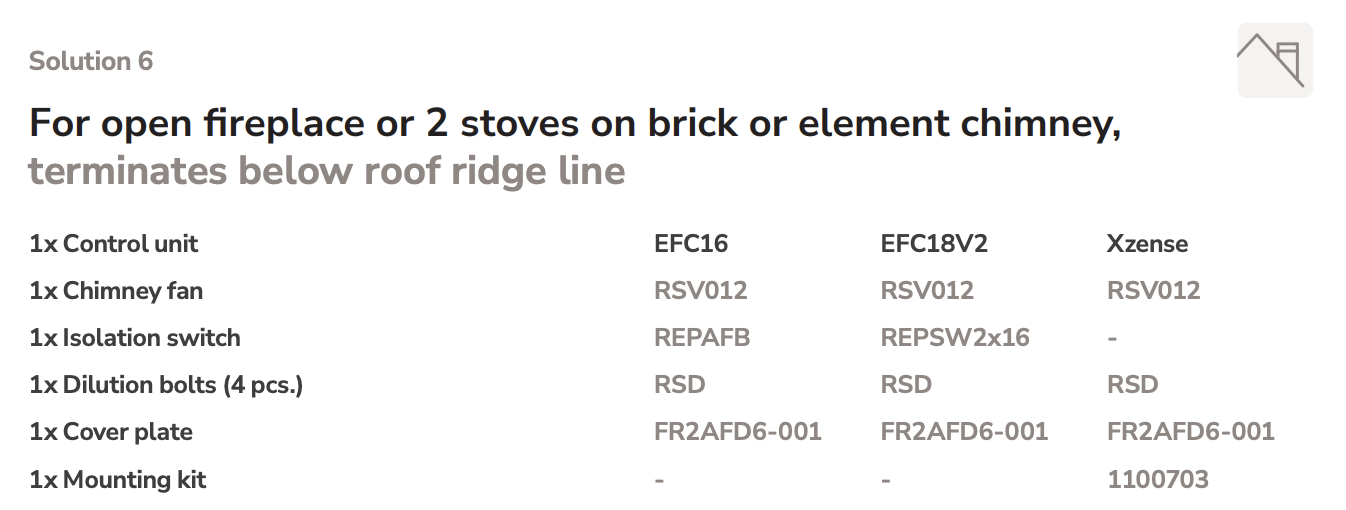

What’s Included?
Each Solution 6 package includes:
- 1 x Exodraft RSV012 Chimney Fan
- 1 x Exodraft Control Unit – EFC16, EFC18V2 or Xzense
- 1 x Isolation Switch – where applicable
- 1 x RSD Dilution Bolt Set – 4 pieces
- 1 x FR2AFD6-001 Cover Plate
- 1 x 1100703 Mounting Kit – with Xzense package
Choose Your Control
EFC16 Manual Control
The Exodraft EFC16 provides straightforward manual control of the chimney fan, allowing the fan capacity to be adjusted to suit the draught requirements of the fireplace or stoves.
It is a simple and reliable option for installations where manual control is preferred.
EFC16 package includes:
- 1 x EFC16 Control Unit
- 1 x RSV012 Chimney Fan
- 1 x REPAFB Isolation Switch
- 1 x RSD Dilution Bolt Set
- 1 x FR2AFD6-001 Cover Plate
EFC18V2 Control
The Exodraft EFC18V2 provides a more advanced level of chimney fan control, offering additional functionality to help manage the chimney draught during operation.
It is well suited to installations where greater control and automation are required while retaining a conventional controller.
EFC18V2 package includes:
- 1 x EFC18V2 Control Unit
- 1 x RSV012 Chimney Fan
- 1 x REPSW2x16 Isolation Switch
- 1 x RSD Dilution Bolt Set
- 1 x FR2AFD6-001 Cover Plate
Xzense Wireless Control
The Exodraft Xzense is the premium control option, providing intelligent wireless control of the chimney fan for greater convenience and flexibility.
It is ideal for customers wanting a more advanced chimney draught system with easier control of fan performance during lighting, normal operation and refuelling.
Xzense package includes:
- 1 x Xzense Control System
- 1 x RSV012 Chimney Fan
- 1 x RSD Dilution Bolt Set
- 1 x FR2AFD6-001 Cover Plate
- 1 x 1100703 Mounting Kit

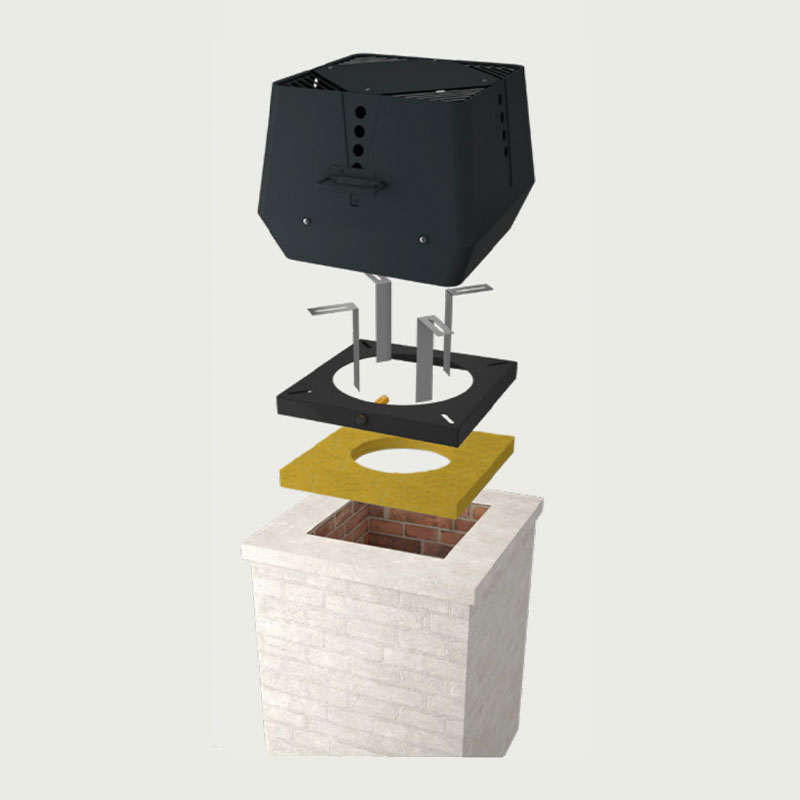

Exodraft RSV012 Chimney Fan
The Exodraft RSV012 chimney fan is designed for applications requiring greater chimney fan capacity than the smaller RSV009 packages.
Installed at the chimney termination, it creates negative pressure throughout the chimney and flue system, helping provide a stable and dependable draught. The RSV012 uses vertical flue-gas discharge, making it the appropriate configuration within Solution 6 for a chimney terminating below the roof ridge line.
Benefits of an Exodraft Chimney Fan
- Creates reliable chimney draught
- Helps improve fire lighting
- Helps minimise smoke spillage
- Supports consistent operation
- Assists during refuelling
- Reduces draught fluctuations
- Provides controllable performance
Open Fireplace Chimney Draught
Open fireplaces can require significantly more chimney draught than closed appliances because of the larger fireplace opening and increased volume of air entering the chimney.
Solution 6 uses the larger RSV012 chimney fan to provide additional mechanical draught assistance where natural chimney performance alone may not be sufficient.
Two Stove Installations
Solution 6 is also configured for installations involving two stoves, where the larger RSV012 fan provides the additional capacity required for the specified multiple-appliance arrangement.
The exact suitability and configuration of any multiple-appliance chimney system should always be assessed for the individual installation.
Which Exodraft Solution Do I Need?
The correct package depends on the appliance arrangement, chimney construction and position of the chimney termination.
Solution 1: Single stove or insert, brick/element chimney, terminating above the roof ridge – RS009.
Solution 2: Single stove or insert, brick/element chimney, terminating below the roof ridge – RSV009.
Solution 3: Single stove or insert, steel chimney, terminating above the roof ridge – RS009.
Solution 4: Single stove or insert, steel chimney, terminating below the roof ridge – RSV009.
Solution 5: Open fireplace or two stoves, brick/element chimney, terminating above the roof ridge – RS012.
Solution 6: Open fireplace or two stoves, brick/element chimney, terminating below the roof ridge – RSV012.
Professional Chimney Fan Advice
Selecting the correct Exodraft chimney fan package depends on the fireplace or stove arrangement, chimney construction, flue dimensions, fireplace opening, chimney height, termination position and required draught.
If you are unsure whether Exodraft Solution 6 is suitable for your installation, contact our team. We can help identify the appropriate chimney fan, control system and installation arrangement for your project.
