The Exodraft Solution 4 Chimney Fan Package provides the key components required to create a reliable mechanical chimney draught system for a single fireplace, stove or insert connected to a steel chimney terminating below the roof ridge line.
At the heart of the package is the Exodraft RSV009 chimney fan, designed to create controlled negative pressure within the chimney and flue system. This helps maintain reliable draught where natural chimney performance may be weak, inconsistent or affected by the position of the chimney termination.
What Is Solution 4 For?
Solution 4 is designed for single solid-fuel fireplace and stove installations using a steel chimney system where the chimney terminates below the roof ridge line.
- Wood-burning stoves
- Fireplace inserts
- Open fireplaces
- Single fireplace installations
- Steel chimney systems
- Below-ridge chimney terminations
It is particularly suited to installations where additional mechanical draught assistance is required due to chimney height, termination position, surrounding buildings, wind conditions or the overall configuration of the flue system.
Complete Chimney Draught Package

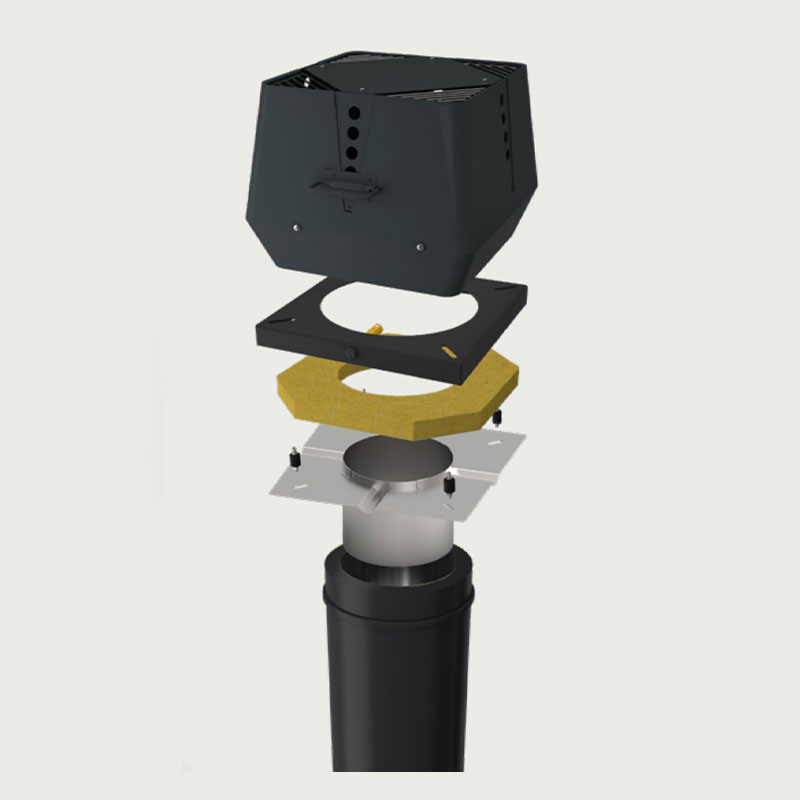

Exodraft Solution 4 combines the chimney fan, control system and installation components into one convenient package specifically configured for a steel chimney terminating below the roof ridge.
Three control options are available: EFC16, EFC18V2 and Xzense, allowing the system to be selected according to the required level of operation and automation.
What’s Included?

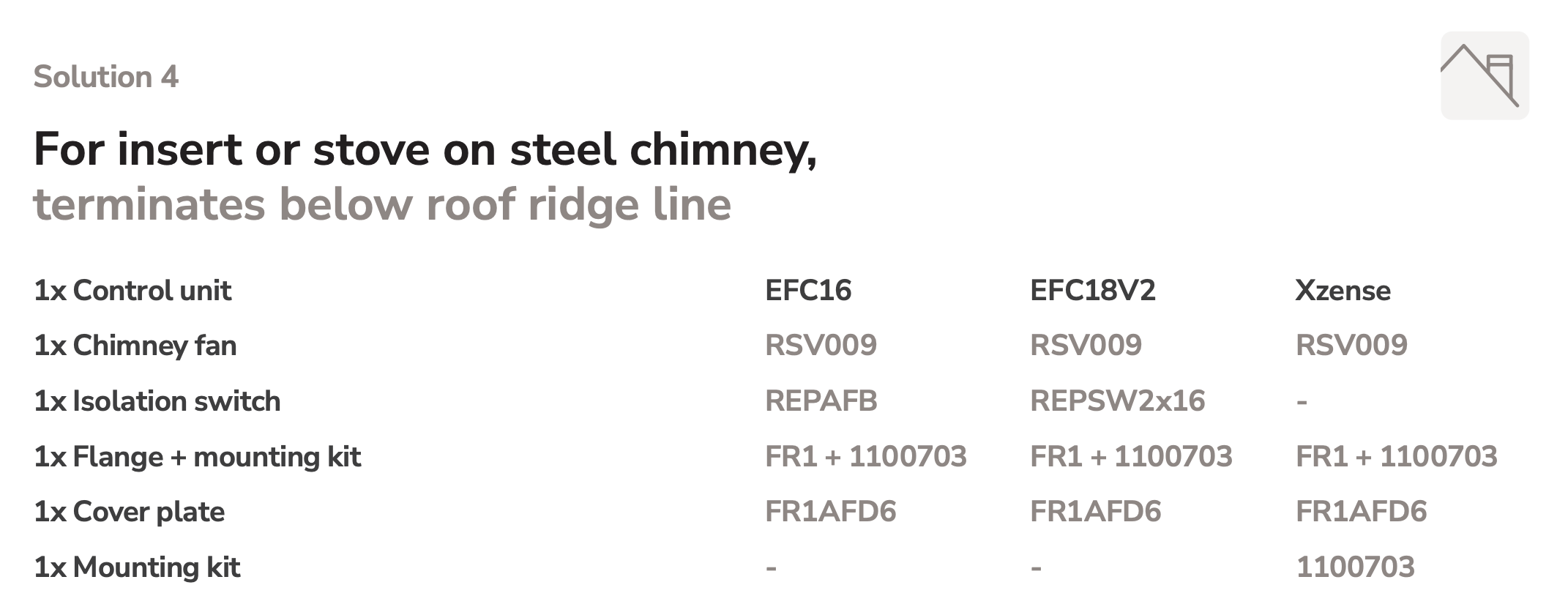

Each Solution 4 package includes:
- 1 x Exodraft RSV009 Chimney Fan
- 1 x Exodraft Control Unit – EFC16, EFC18V2 or Xzense
- 1 x Isolation Switch – where applicable
- 1 x FR1 Flange
- 1 x 1100703 Mounting Kit
- 1 x FR1AFD6 Cover Plate
Choose Your Control
EFC16 Manual Control
The Exodraft EFC16 provides straightforward manual control of the chimney fan, allowing the fan speed to be adjusted to achieve the required chimney draught.
It is a simple solution for controlling draught during lighting, normal operation and refuelling.
EFC16 package includes:
- 1 x EFC16 Control Unit
- 1 x RSV009 Chimney Fan
- 1 x REPAFB Isolation Switch
- 1 x FR1 Flange
- 1 x 1100703 Mounting Kit
- 1 x FR1AFD6 Cover Plate
EFC18V2 Automatic Control
The Exodraft EFC18V2 offers a more advanced level of chimney fan control, providing additional automatic functionality to assist with management of the chimney draught system.
It is ideal where greater automation is required while maintaining convenient control over the chimney fan.
EFC18V2 package includes:
- 1 x EFC18V2 Control Unit
- 1 x RSV009 Chimney Fan
- 1 x REPSW2x16 Isolation Switch
- 1 x FR1 Flange
- 1 x 1100703 Mounting Kit
- 1 x FR1AFD6 Cover Plate
Xzense Wireless Control
The Exodraft Xzense is the premium control option, providing intelligent wireless control of the chimney fan for greater convenience and flexibility.
It is suited to customers wanting a more advanced draught-control system with enhanced control over chimney fan operation.
Xzense package includes:
- 1 x Xzense Control System
- 1 x RSV009 Chimney Fan
- 1 x FR1 Flange
- 1 x 1100703 Mounting Kit
- 1 x FR1AFD6 Cover Plate
Exodraft RSV009 Chimney Fan
The Exodraft RSV009 chimney fan is installed at the top of the chimney and creates controlled negative pressure throughout the flue system.
The RSV009 provides vertical flue-gas discharge, making it the appropriate fan configuration within this package for the specified steel chimney application terminating below the roof ridge line.
Benefits of an Exodraft Chimney Fan
- Creates reliable chimney draught
- Helps improve fire lighting
- Supports consistent operation
- Helps minimise smoke spillage
- Assists during refuelling
- Reduces draught fluctuations
- Provides controllable performance
Which Exodraft Solution Do I Need?
The correct package depends primarily on the type of chimney and where it terminates in relation to the roof ridge.
Solution 1: Brick or element chimney terminating above the roof ridge, using an RS009 chimney fan.
Solution 2: Brick or element chimney terminating below the roof ridge, using an RSV009 chimney fan.
Solution 3: Steel chimney terminating above the roof ridge, using an RS009 chimney fan.
Solution 4: Steel chimney terminating below the roof ridge, using an RSV009 chimney fan.
Professional Chimney Fan Advice
Selecting the correct Exodraft package depends on the fireplace or stove, chimney construction, flue diameter, chimney height, roof position, termination height and required chimney draught.
If you are unsure whether Exodraft Solution 4 is suitable for your installation, contact our team. We can help identify the appropriate chimney fan, control system and installation arrangement for your project.
