The Exodraft Solution 1 Chimney Fan Package provides the essential components required to create a reliable mechanical chimney draught system for a single fireplace, stove or insert. Designed for installations using a brick or element chimney that terminates above the roof ridge, the package combines the proven Exodraft RS009 chimney fan with your choice of control system.
Installed at the top of the chimney, the RS009 chimney fan creates negative pressure within the flue, helping establish and maintain a consistent chimney draught. This can make lighting the fire easier, improve performance during normal operation and help reduce the risk of smoke escaping into the room when natural chimney draught is insufficient.
What Is This Package For?
This package is designed primarily for single solid-fuel fireplace and stove installations where additional assistance is required to create or stabilise chimney draught.
- Wood-burning stoves
- Fireplace inserts
- Open fireplaces
- Single fireplace installations
- Brick chimney systems
- Element chimney systems
- Chimneys terminating above the roof ridge
It can be particularly useful where chimney performance is affected by the height or design of the chimney, surrounding buildings, wind conditions or other factors that can contribute to weak or inconsistent natural draught.
Complete Exodraft Chimney Draught Solution
Rather than selecting each component individually, Solution 1 brings together the chimney fan, control and installation accessories required for the specified application. Simply choose the control option that best suits the level of operation and automation required.

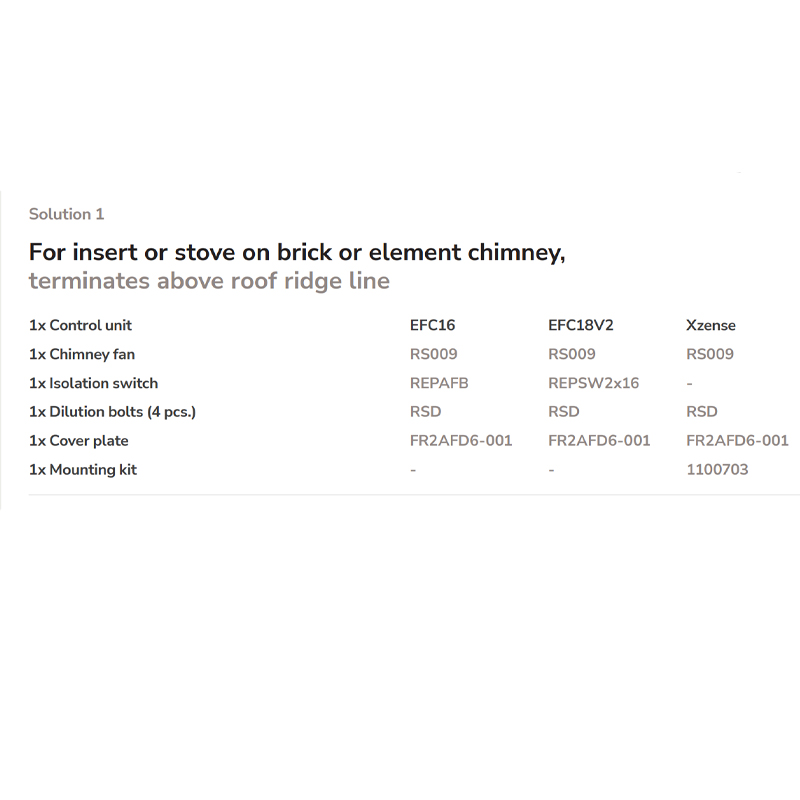

What’s Included?
Every Solution 1 package includes:
- 1 x Exodraft RS009 Chimney Fan
- 1 x Exodraft Control Unit – selected from EFC16, EFC18V2 or Xzense
- 1 x Isolation Switch – where applicable to the selected control package
- 1 x RSD Dilution Bolt Set – 4 pieces
- 1 x FR2AFD6-001 Cover Plate
- 1 x Mounting Kit – supplied with the Xzense package where specified
Choose Your Control
EFC16 Manual Control
The Exodraft EFC16 is a straightforward manual electronic controller that allows the speed and capacity of the chimney fan to be adjusted to suit the fire. It provides simple control for users who want to manually regulate the chimney draught during lighting, normal burning and refuelling.
EFC16 package includes:
- 1 x EFC16 Control Unit
- 1 x RS009 Chimney Fan
- 1 x REPAFB Isolation Switch
- 1 x RSD Dilution Bolt Set
- 1 x FR2AFD6-001 Cover Plate
EFC18V2 Automatic Control
The Exodraft EFC18V2 provides a more advanced level of control with temperature monitoring and automatic functions. It is designed to assist during lighting and refuelling while providing more automated management of the chimney fan during fireplace operation.
EFC18V2 package includes:
- 1 x EFC18V2 Control Unit
- 1 x RS009 Chimney Fan
- 1 x REPSW2x16 Isolation Switch
- 1 x RSD Dilution Bolt Set
- 1 x FR2AFD6-001 Cover Plate
Xzense Wireless Control
The Exodraft Xzense is the premium control option, providing intelligent wireless control of the chimney fan. It can be operated from the Xzense touch display and compatible mobile devices, giving convenient control over chimney draught without relying on a conventional wall-mounted manual controller.
Xzense also provides functions designed to assist with lighting and refuelling, together with temperature monitoring and intelligent control of the chimney fan.
Xzense package includes:
- 1 x Xzense Control System
- 1 x RS009 Chimney Fan
- 1 x RSD Dilution Bolt Set
- 1 x FR2AFD6-001 Cover Plate
- 1 x 1100703 Mounting Kit

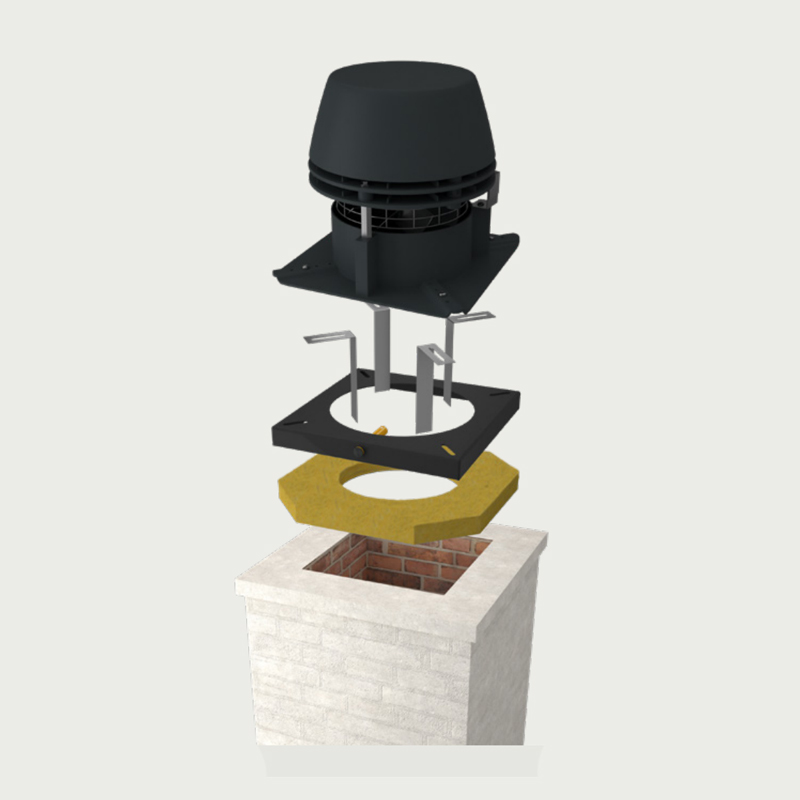

Exodraft RS009 Chimney Fan
At the heart of each package is the Exodraft RS009 chimney fan. Designed for solid-fuel appliances including wood-burning stoves and fireplaces, the fan is installed at the chimney termination and creates negative pressure within the chimney and flue system.
The RS range uses a horizontal flue-gas discharge and is designed to provide a stable mechanical draught when natural chimney draught alone cannot provide consistent performance.
Benefits of an Exodraft Chimney Fan
- Creates consistent chimney draught
- Helps improve fire lighting
- Supports stable combustion
- Helps minimise smoke spillage
- Assists during refuelling
- Reduces weather-related draught issues
- Provides controllable chimney performance
Which Control Should I Choose?
EFC16 – Choose this option if you want a simple and reliable manual controller for adjusting the chimney fan.
EFC18V2 – Choose this option if you want additional automation and temperature-based control while retaining a conventional wall-mounted control.
Xzense – Choose this option for the most advanced system, with wireless control, intelligent functions and convenient operation from the control panel or compatible mobile device.
Professional Chimney Fan Advice
Selecting the correct chimney fan solution depends on the fireplace or stove, chimney construction, chimney dimensions, termination position and the draught requirements of the installation.
If you are unsure whether Exodraft Solution 1 is suitable for your fireplace or chimney, please contact our team. We can help determine the appropriate fan, control and installation arrangement for your project.
